MC06XS3517AFK

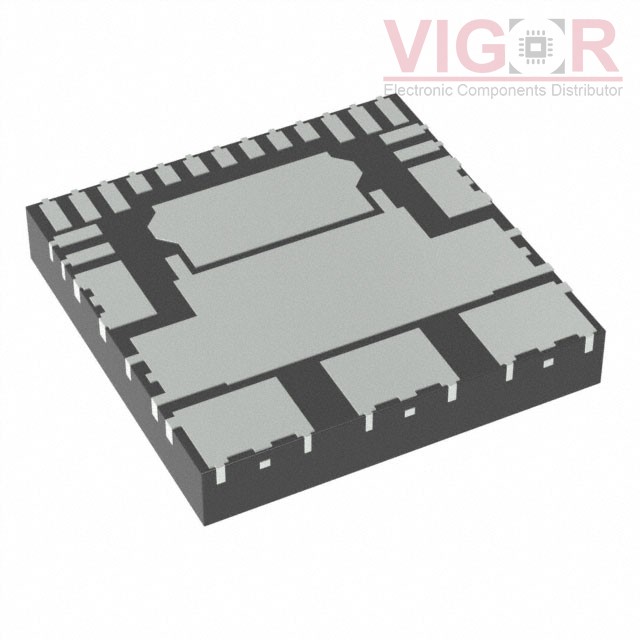

Image is for reference,
please contact us to get the real picture

Part No :: MC06XS3517AFK

Manufacturer: NXP Semiconductors

Description: IC PWR SWITCH N-CHAN 1:5 24PQFN

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: MC06XS3517AFK PDF

Availability: 1924 pieces

Unit Price: ~~$10.23000~~

Current price of MC06XS3517AFK is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MC06XS3517AFK Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Last Time Buy
Switch Type:	General Purpose
Number of Outputs:	5
Ratio - Input:Output:	1:5
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	SPI
Voltage - Load:	7V ~ 20V
Voltage - Supply (Vcc/Vdd):	3V ~ 5.5V
Current - Output (Max):	-
Rds On (Typ):	6mOhm, 17mOhm
Input Type:	-
Features:	Watchdog Timer
Fault Protection:	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	24-PQFN (12x12)
Package / Case:	24-PowerQFN
