ADP1196ACBZ-02-R7

Part No :: ADP1196ACBZ-02-R7

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 3866912

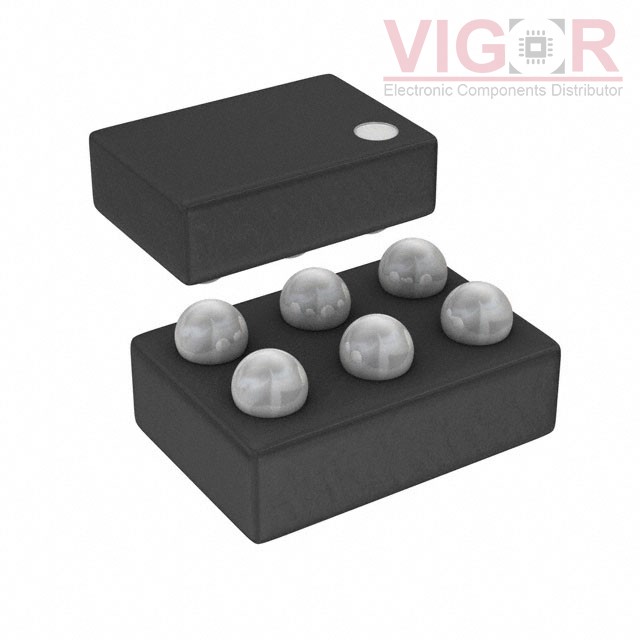

Description: IC PWR SWITCH N-CHAN 1:1 6WLCSP

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: ADP1196ACBZ-02-R7 PDF

Country of origin: -

Date code: -

ADP1196ACBZ-02-R7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side or Low Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	1.83V ~ 5.5V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	3A
Rds On (Typ):	10mOhm
Input Type:	Non-Inverting
Features:	Slew Rate Controlled
Fault Protection:	Current Limiting (Fixed), Over Temperature
Operating Temperature:	-40°C ~ 105°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-WLCSP (1.45x0.95)
Package / Case:	6-WFBGA, WLCSP
