VN7004CLHTR

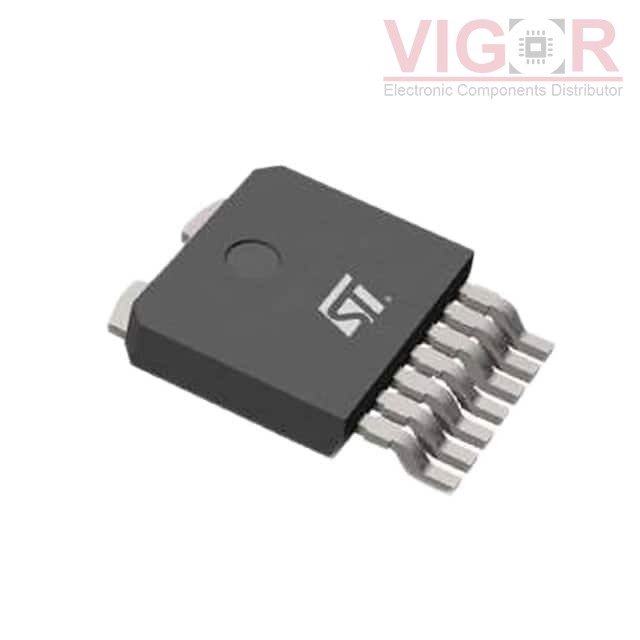

Image is for reference,
please contact us to get the real picture

Part No :: VN7004CLHTR

Manufacturer: STMicroelectronics

Description: IC PWR SWITCH N-CHAN 1:1 OCTAPAK

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: VN7004CLHTR PDF

Availability: 1573 pieces

Unit Price: ~~$3.47000~~

Current price of VN7004CLHTR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VN7004CLHTR Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	High Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	4V ~ 28V
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	80A
Rds On (Typ):	4mOhm
Input Type:	Non-Inverting
Features:	Auto Restart
Fault Protection:	Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	OctaPAK 7+1
Package / Case:	OctaPAK (7 leads + Tab)
