VNN3NV04PTR-E

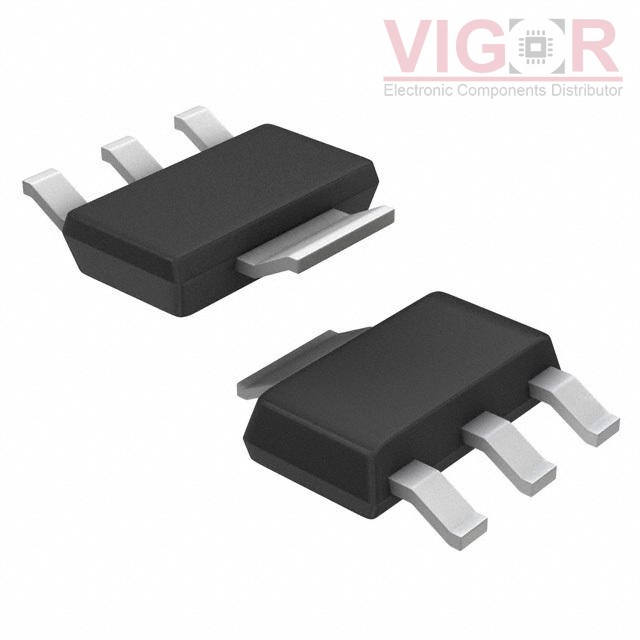

Image is for reference,
please contact us to get the real picture

Part No :: VNN3NV04PTR-E

Manufacturer: STMicroelectronics

Description: IC PWR DRIVER N-CHAN 1:1 SOT223

Catalog: PMIC - Power Distribution Switches, Load Drivers

DataSheet: VNN3NV04PTR-E PDF

Availability: 1000 pieces

Unit Price: ~~$2.10000~~

Current price of VNN3NV04PTR-E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VNN3NV04PTR-E Specifications

Type	Description
Series:	OMNIFET II™, VIPower™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Switch Type:	General Purpose
Number of Outputs:	1
Ratio - Input:Output:	1:1
Output Configuration:	Low Side
Output Type:	N-Channel
Interface:	On/Off
Voltage - Load:	36V (Max)
Voltage - Supply (Vcc/Vdd):	Not Required
Current - Output (Max):	3.5A
Rds On (Typ):	120mOhm (Max)
Input Type:	Non-Inverting
Features:	-
Fault Protection:	Current Limiting (Fixed), Over Temperature, Over Voltage
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-223
Package / Case:	TO-261-4, TO-261AA

Please confirm the specifications of the products when ordering.
