PD69220R-022320

Part No :: PD69220R-022320

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 4955989

Description: MCU FOR PD692XX FAMILY, BASED PD

Catalog: PMIC - Power Over Ethernet (PoE) Controllers

DataSheet: PD69220R-022320 PDF

Country of origin: -

Date code: -

PD69220R-022320 Specifications

Type	Description
Series:	-
Package:	Tray
Part Status:	Obsolete
Type:	Controller (PSE)
Number of Channels:	48
Power - Max:	45 W
Internal Switch(s):	Yes
Auxiliary Sense:	Yes
Standards:	802.3at (PoE+), 802.3af (PoE), 802.3bt
Voltage - Supply:	3V ~ 3.63V
Current - Supply:	-
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount

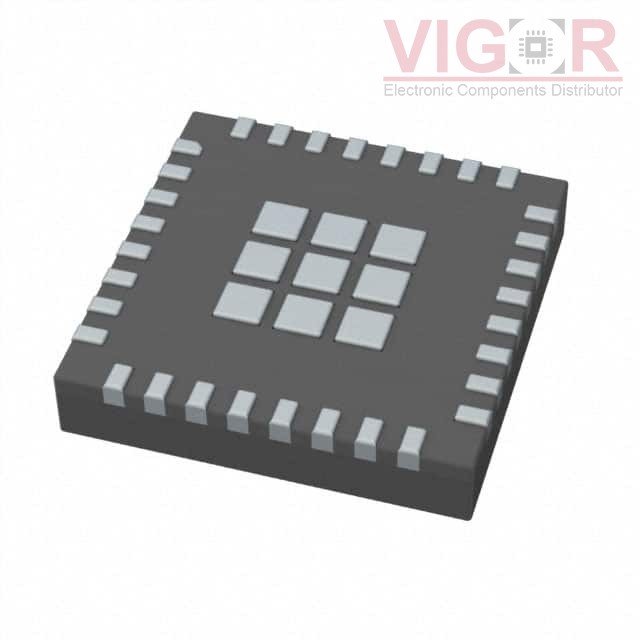

Package / Case:	32-VFLGA Exposed Pad
Supplier Device Package:	32-LGA (5x5)

Alternative Products

Part Number	Manufacturer & Description	Compare
PD69220R-022420-TR Match 100%	Roving Networks / Microchip Technology IC POE PSE CTLR MCU 32LGA	PD69220R-022320 vs PD69220R-022420-TR
PD69220C-022419-TR Match 100%	Roving Networks / Microchip Technology IC POE PSE CTLR MCU 32LGA	PD69220R-022320 vs PD69220C-022419-TR
PD69220R-035400 Match 100%	Roving Networks / Microchip Technology IC POE PSE CTLR MCU 32LGA	PD69220R-022320 vs PD69220R-035400
PD69220C-022419 Match 100%	Roving Networks / Microchip Technology IC POE PSE CTLR MCU 32LGA	PD69220R-022320 vs PD69220C-022419
PD69220R-022420 Match 100%	Roving Networks / Microchip Technology IC POE PSE CTLR MCU 32LGA	PD69220R-022320 vs PD69220R-022420
PD69220R-035400-TR Match 100%	Roving Networks / Microchip Technology IC POE PSE CTLR MCU 32LGA	PD69220R-022320 vs PD69220R-035400-TR
