Part No :

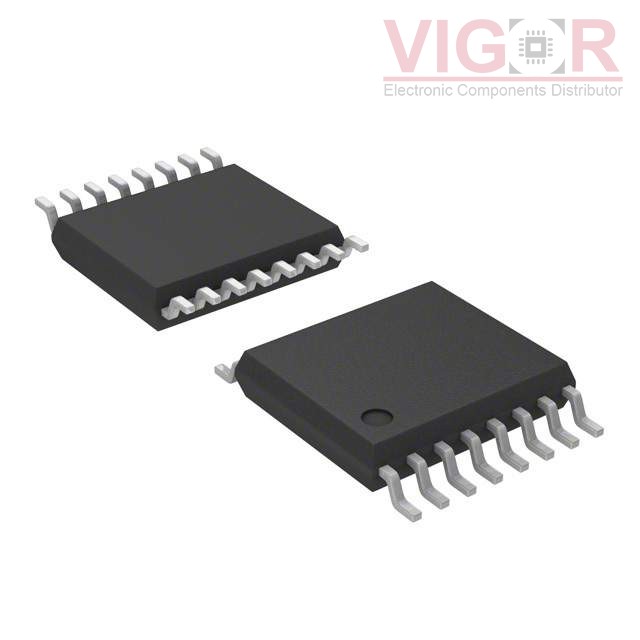

UCC3806PW

Manufacturer
VIGOR
VIGOR # :

3850602

Description
UCC3806 LOW POWER, DUAL OUTPUT,
Catalog
PMIC - Voltage Regulators - DC DC Switching Controllers
DataSheet
UCC3806PW PDF
Country of origin
Confirming
Date code
TBC
ads
Type Description
Series:-
Package:Bulk
Part Status:Active
Output Type:Transistor Driver
Function:Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration:Positive, Isolation Capable
Topology:Buck, Boost, Flyback, Forward Converter
Number of Outputs:2
Output Phases:1
Voltage - Supply (Vcc/Vdd):8V ~ 14.5V
Frequency - Switching:47kHz
Duty Cycle (Max):50%
Synchronous Rectifier:Yes
Clock Sync:No
Serial Interfaces:-
Control Features:Current Limit, Enable, Frequency Control
Operating Temperature:0°C ~ 70°C (TA)
Mounting Type:Surface Mount
Package / Case:16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:16-TSSOP
