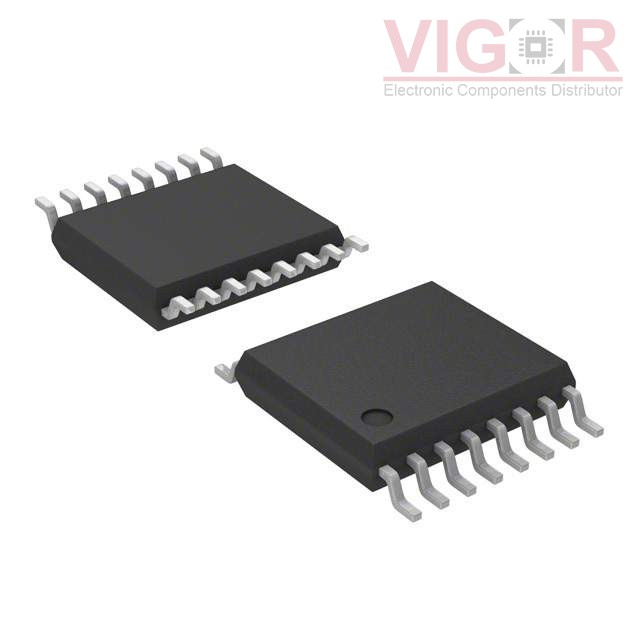

UCC2806PWTRG4

Part No :: UCC2806PWTRG4

Manufacturer: Texas Instruments

VIGOR # :: 3853905

Description: IC REG CTRLR MULT TOP 16TSSOP

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: UCC2806PWTRG4 PDF

Country of origin: -

Date code: -

UCC2806PWTRG4 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Output Type:	Transistor Driver
Function:	Step-Up, Step-Up/Step-Down
Output Configuration:	Positive, Isolation Capable
Topology:	Boost, Flyback, Forward Converter
Number of Outputs:	2
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	8V ~ 14.5V
Frequency - Switching:	47kHz
Duty Cycle (Max):	50%
Synchronous Rectifier:	Yes
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Current Limit, Enable, Frequency Control
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:	16-TSSOP
