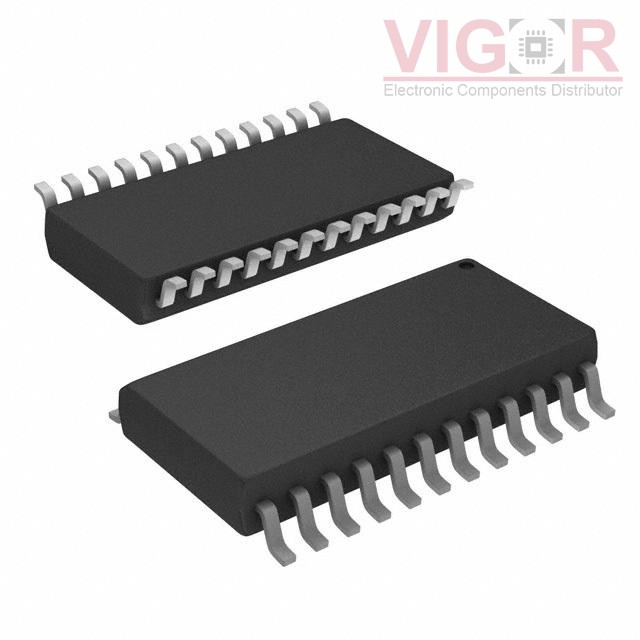

CS5422GDWFR24

Part No :: CS5422GDWFR24

Manufacturer: VIGOR

VIGOR # :: 3854489

Description: SWITCHING CONTROLLER

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: CS5422GDWFR24 PDF

Country of origin: -

Date code: -

CS5422GDWFR24 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Output Type:	Transistor Driver
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Number of Outputs:	2
Output Phases:	2
Voltage - Supply (Vcc/Vdd):	7.8V ~ 16V
Frequency - Switching:	150kHz ~ 600kHz
Duty Cycle (Max):	100%
Synchronous Rectifier:	Yes
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Frequency Control
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Surface Mount
Package / Case:	24-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	24-SOIC
