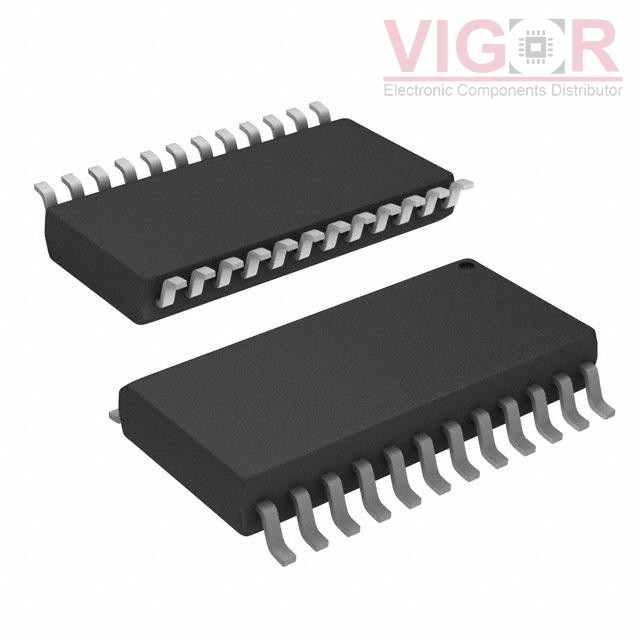

ISL6569CBZ

Part No :: ISL6569CBZ

Manufacturer: VIGOR

VIGOR # :: 3855177

Description: SWITCHING CONTROLLER

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: ISL6569CBZ PDF

Country of origin: -

Date code: -

ISL6569CBZ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Type:	PWM Signal
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Number of Outputs:	2
Output Phases:	2
Voltage - Supply (Vcc/Vdd):	4.75V ~ 5.25V
Frequency - Switching:	80kHz ~ 1MHz
Duty Cycle (Max):	75%
Synchronous Rectifier:	-
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Current Limit, Enable, Frequency Control, Power Good
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Surface Mount
Package / Case:	24-SOIC (0.295", 7.50mm Width)
Supplier Device Package:	24-SOIC
