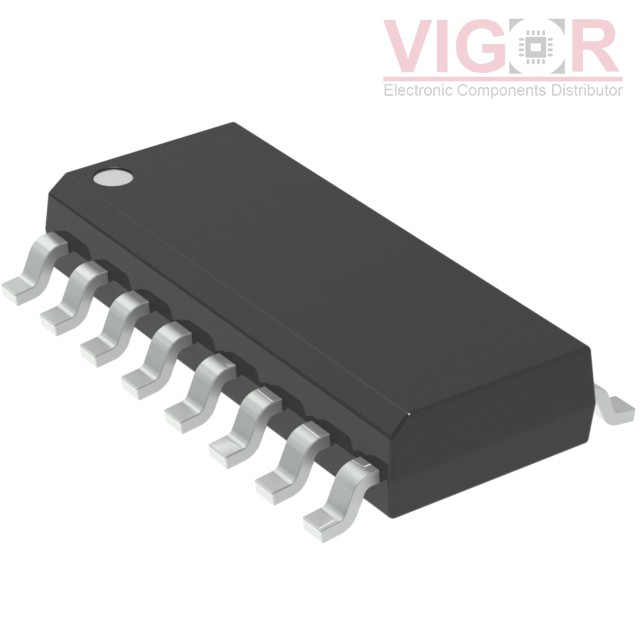

TL594CDR2G

Part No :: TL594CDR2G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3855219

Description: IC REG CTRLR BCK/PSH-PULL 16SOIC

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: TL594CDR2G PDF

Country of origin: -

Date code: -

TL594CDR2G Specifications

Type	Description
Series:	SWITCHMODE™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Type:	Transistor Driver
Function:	Step-Down, Step-Up/Step-Down
Output Configuration:	Positive
Topology:	Buck, Push-Pull
Number of Outputs:	2
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	7V ~ 40V
Frequency - Switching:	300kHz
Duty Cycle (Max):	96%
Synchronous Rectifier:	Yes
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Dead Time Control, Frequency Control
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	16-SOIC
