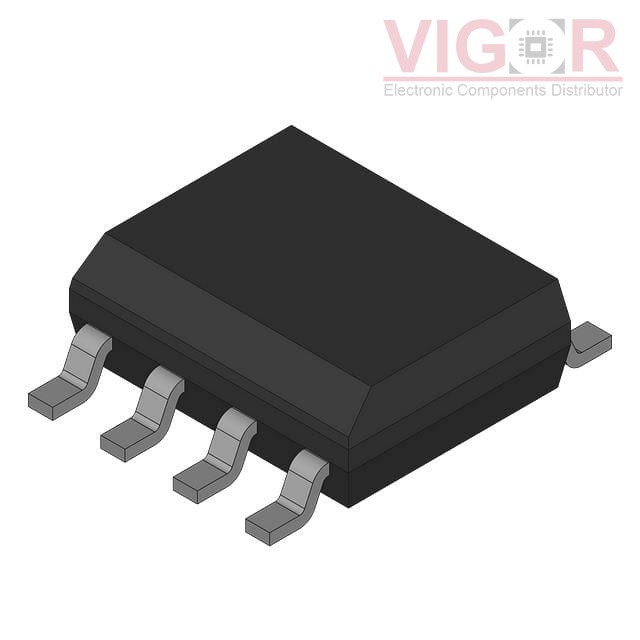

UCC3813D-0G4

Part No :: UCC3813D-0G4

Manufacturer: VIGOR

VIGOR # :: 3855566

Description: SWITCHING CONTROLLER

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: UCC3813D-0G4 PDF

Country of origin: -

Date code: -

UCC3813D-0G4 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Type:	Transistor Driver
Function:	Step-Up, Step-Up/Step-Down
Output Configuration:	Positive
Topology:	Boost, Flyback, Forward Converter
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	6.9V ~ 12V
Frequency - Switching:	46kHz
Duty Cycle (Max):	99%
Synchronous Rectifier:	No
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Frequency Control
Operating Temperature:	0°C ~ 70°C (TA)
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SOIC

Alternative Products

Part Number	Manufacturer & Description	Compare
UCC3801PWTR Match 100%	VIGOR UCC3801 LOW-POWER BICMOS CURRENT	UCC3813D-0G4 vs UCC3801PWTR
UCC3813PWTR-0 Match 100%	VIGOR UCC3813-0 LOW POWER ECONOMY BICM	UCC3813D-0G4 vs UCC3813PWTR-0
UCC3813N-1 Match 100%	VIGOR UCC3813-1 LOW POWER ECONOMY BICM	UCC3813D-0G4 vs UCC3813N-1
UCC3801PW Match 100%	VIGOR UCC3801 LOW-POWER BICMOS CURRENT	UCC3813D-0G4 vs UCC3801PW
UCC3801N Match 100%	Texas Instruments IC REG CTRLR MULT TOPOLOGY 8DIP	UCC3813D-0G4 vs UCC3801N
UCC3800DG4 Match 100%	Texas Instruments IC REG CTRLR MULT TOPOLOGY 8SOIC	UCC3813D-0G4 vs UCC3800DG4
