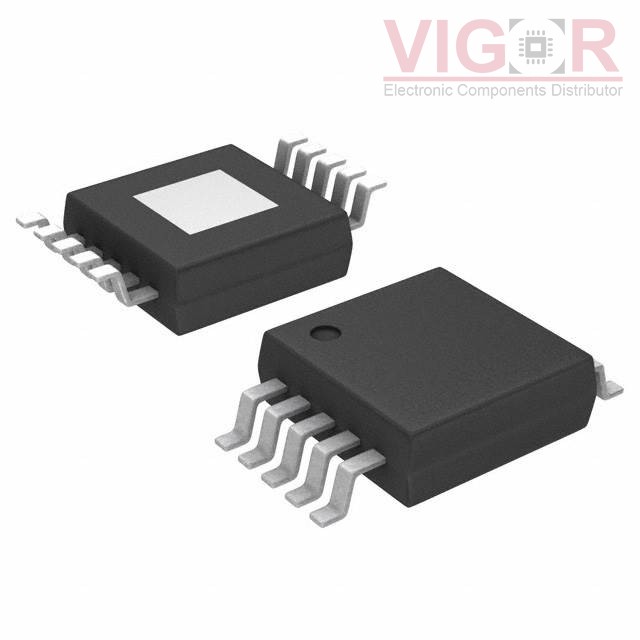

TPS40004DGQ

Part No :: TPS40004DGQ

Manufacturer: VIGOR

VIGOR # :: 3855970

Description: SWITCHING CONTROLLER

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: TPS40004DGQ PDF

Country of origin: -

Date code: -

TPS40004DGQ Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Type:	Transistor Driver
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Number of Outputs:	1
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	2.25V ~ 5.5V
Frequency - Switching:	300kHz
Duty Cycle (Max):	94%
Synchronous Rectifier:	Yes
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Current Limit, Enable, Soft Start
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	10-TFSOP, 10-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package:	10-MSOP-PowerPad
