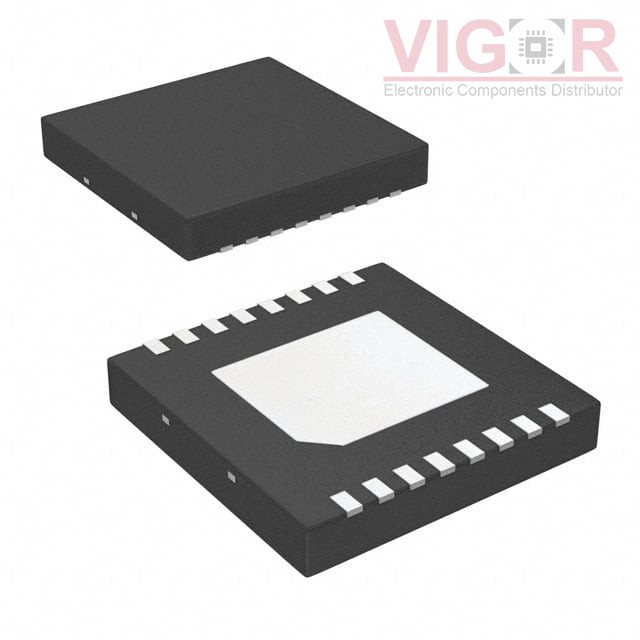

LM5025BSD

Part No :: LM5025BSD

Manufacturer: VIGOR

VIGOR # :: 3856518

Description: SWITCHING CONTROLLER, VOLTAGE-MO

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: LM5025BSD PDF

Country of origin: -

Date code: -

LM5025BSD Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Output Type:	Transistor Driver
Function:	Step-Up/Step-Down
Output Configuration:	Positive, Isolation Capable
Topology:	Forward Converter
Number of Outputs:	2
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	8V ~ 15V
Frequency - Switching:	200kHz ~ 400kHz
Duty Cycle (Max):	71%, 73%
Synchronous Rectifier:	No
Clock Sync:	Yes
Serial Interfaces:	-
Control Features:	Dead Time Control, Frequency Control, Ramp, Soft Start
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	16-WFDFN Exposed Pad
Supplier Device Package:	16-WSON (5x5)
