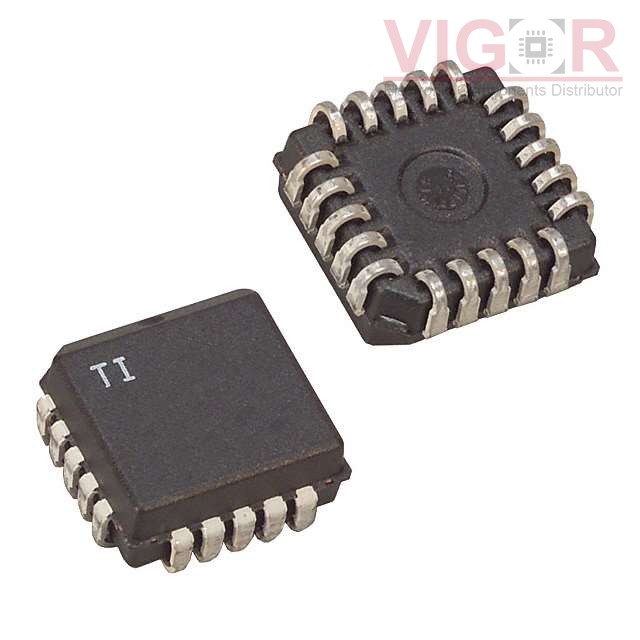

UC2825Q

Part No :: UC2825Q

Manufacturer: VIGOR

VIGOR # :: 3857655

Description: SWITCHING CONTROLLER

Catalog: PMIC - Voltage Regulators - DC DC Switching Controllers

DataSheet: UC2825Q PDF

Country of origin: -

Date code: -

UC2825Q Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Type:	Transistor Driver
Function:	Step-Up, Step-Up/Step-Down
Output Configuration:	Positive
Topology:	Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
Number of Outputs:	2
Output Phases:	1
Voltage - Supply (Vcc/Vdd):	8.4V ~ 30V
Frequency - Switching:	340kHz ~ 460kHz
Duty Cycle (Max):	80%
Synchronous Rectifier:	No
Clock Sync:	No
Serial Interfaces:	-
Control Features:	Current Limit, Enable, Frequency Control, Ramp, Soft Start
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	20-LCC (J-Lead)
Supplier Device Package:	20-PLCC (9x9)
