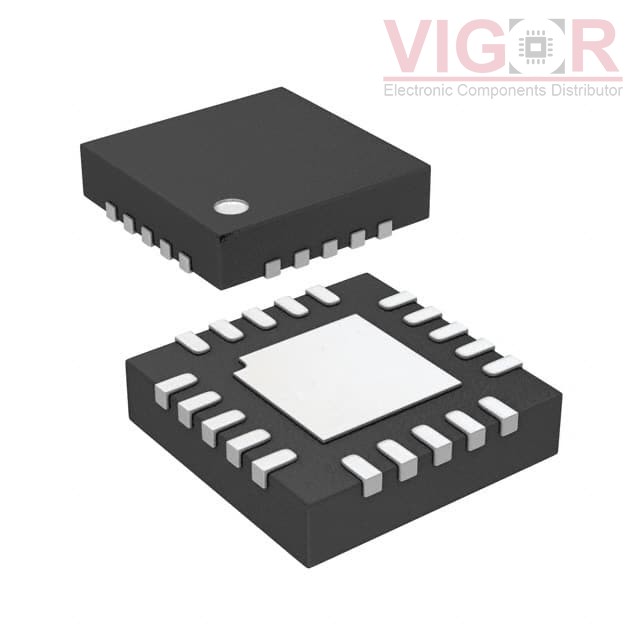

LTC3569EUD#PBF

Part No :: LTC3569EUD#PBF

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: IC REG BUCK ADJ TRPL 20QFN

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

DataSheet: LTC3569EUD#PBF PDF

Availability: 1836 pieces

Current price of LTC3569EUD#PBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LTC3569EUD#PBF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Output Type:	Adjustable
Number of Outputs:	3
Voltage - Input (Min):	2.5V
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	0.425V
Voltage - Output (Max):	5.5V
Current - Output:	600mA, 1.2A
Frequency - Switching:	2.25MHz, 1MHz ~ 3MHz
Synchronous Rectifier:	Yes
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	20-WFQFN Exposed Pad
Supplier Device Package:	20-QFN (3x3)
