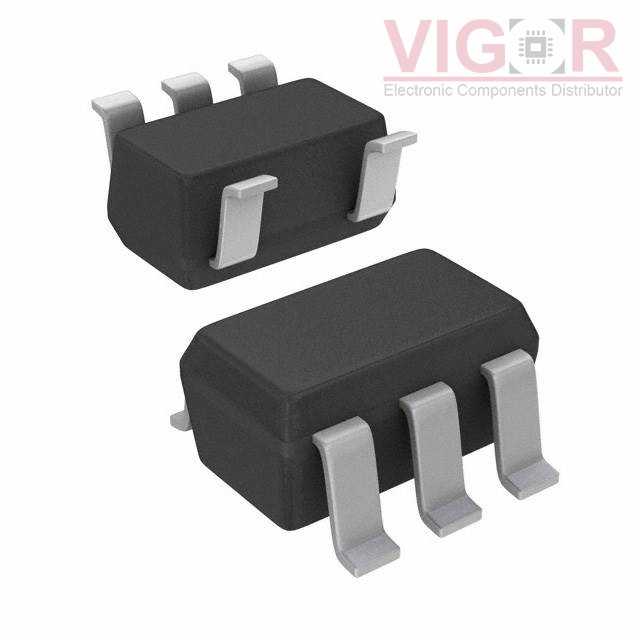

TPS60402QDBVRQ1

Part No :: TPS60402QDBVRQ1

Manufacturer: Texas Instruments

VIGOR # :: 3889721

Description: IC REG CHARG PUMP INV 60MA SOT23

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

DataSheet: TPS60402QDBVRQ1 PDF

Country of origin: -

Date code: -

TPS60402QDBVRQ1 Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Function:	Ratiometric
Output Configuration:	Positive or Negative
Topology:	Charge Pump
Output Type:	Fixed
Number of Outputs:	1
Voltage - Input (Min):	1.8V
Voltage - Input (Max):	5.25V
Voltage - Output (Min/Fixed):	-Vin, 2Vin, Vin/2
Voltage - Output (Max):	-
Current - Output:	60mA
Frequency - Switching:	50kHz
Synchronous Rectifier:	No
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SC-74A, SOT-753
Supplier Device Package:	SOT-23-5
