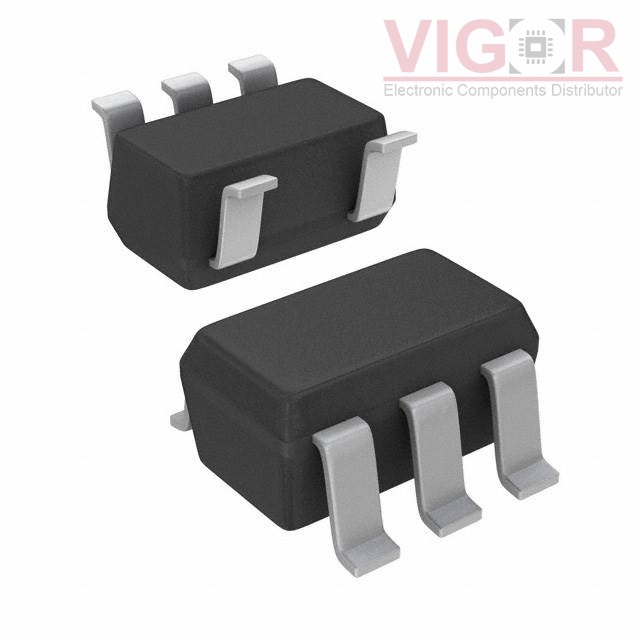

TPS60402DBVTG4

Part No :: TPS60402DBVTG4

Manufacturer: Texas Instruments

VIGOR # :: 3892513

Description: IC REG CHARG PUMP INV 60MA SOT23

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

DataSheet: TPS60402DBVTG4 PDF

Country of origin: -

Date code: -

TPS60402DBVTG4 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Function:	Ratiometric
Output Configuration:	Positive or Negative
Topology:	Charge Pump
Output Type:	Fixed
Number of Outputs:	1
Voltage - Input (Min):	1.8V
Voltage - Input (Max):	5.25V
Voltage - Output (Min/Fixed):	-Vin, 2Vin, Vin/2
Voltage - Output (Max):	-
Current - Output:	60mA
Frequency - Switching:	50kHz
Synchronous Rectifier:	No
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SC-74A, SOT-753
Supplier Device Package:	SOT-23-5

Alternative Products

Part Number	Manufacturer & Description	Compare
TPS60403DBVR Match 100%	Texas Instruments IC REG CHARG PUMP INV 60MA SOT23	TPS60402DBVTG4 vs TPS60403DBVR
TPS60400DBVR Match 100%	VIGOR TPS60400 60MA CHARGE PUMP VOLTAG	TPS60402DBVTG4 vs TPS60400DBVR
TPS60400QDBVRQ1 Match 100%	Texas Instruments IC REG CHARG PUMP INV 60MA SOT23	TPS60402DBVTG4 vs TPS60400QDBVRQ1
TPS60402DBVRG4 Match 100%	Texas Instruments IC REG CHARG PUMP INV 60MA SOT23	TPS60402DBVTG4 vs TPS60402DBVRG4
TPS60403QDBVRQ1 Match 100%	Texas Instruments IC REG CHARG PUMP INV 60MA SOT23	TPS60402DBVTG4 vs TPS60403QDBVRQ1
TPS60401DBVT Match 100%	Texas Instruments IC REG CHARG PUMP INV 60MA SOT23	TPS60402DBVTG4 vs TPS60401DBVT

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 6000

Shipped from

HK warehouse

Expected Shipping Date

Aug 28 - Sep 01 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.5411~~	~~$0.54~~
750	~~$0.5411~~	~~$405.81~~

Current price of TPS60402DBVTG4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
