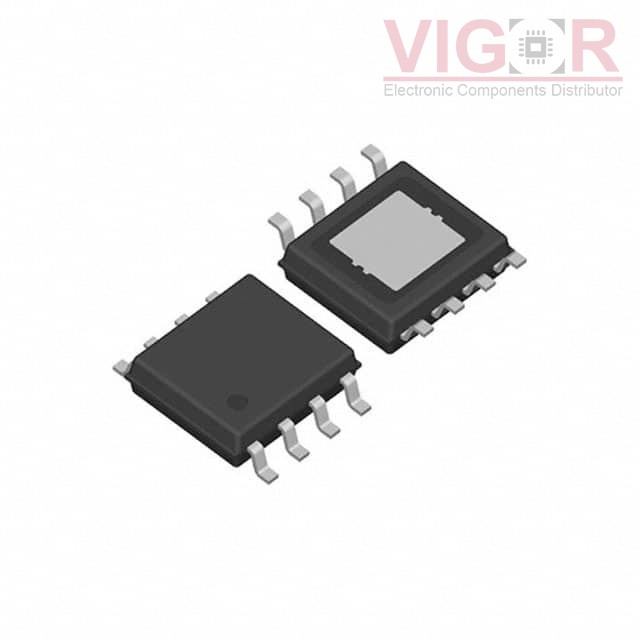

R1242S001D-E2-FE

Part No :: R1242S001D-E2-FE

Manufacturer: RICOH Electronic Devices Co., LTD.

Description: 3A 30V INPUT PWM STEP-DOWN DCDC

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

DataSheet: R1242S001D-E2-FE PDF

Availability: 1724 pieces

Current price of R1242S001D-E2-FE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

R1242S001D-E2-FE Specifications

Type	Description
Series:	R1242S
Package:	Tape & Reel (TR)
Part Status:	Active
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Output Type:	Adjustable
Number of Outputs:	1
Voltage - Input (Min):	5V
Voltage - Input (Max):	30V
Voltage - Output (Min/Fixed):	0.8V
Voltage - Output (Max):	15V
Current - Output:	3A
Frequency - Switching:	330kHz
Synchronous Rectifier:	Yes
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package:	8-HSOP-E
