R1242S001A-E2-FE

R1242S001A-E2-FE

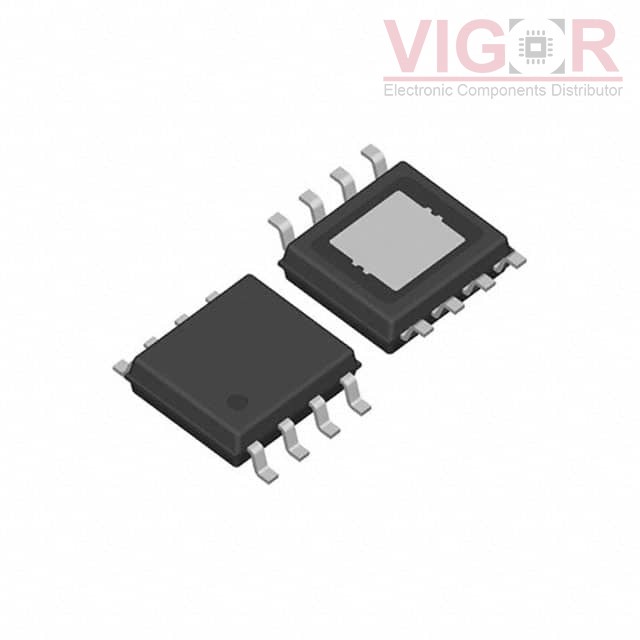

Image is for reference,
please contact us to get the real picture

Part No :

R1242S001A-E2-FE

Manufacturer
RICOH Electronic Devices Co., LTD.
Description
3A 30V INPUT PWM STEP-DOWN DCDC
Catalog
PMIC - Voltage Regulators - DC DC Switching Regulators
Shipped from
HK warehouse
Expected Shipping Date
Oct 26 - Oct 30 2025
DataSheet
R1242S001A-E2-FE PDF
Availability
5000 pieces
Unit Price
$1.35256

Current price of R1242S001A-E2-FE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

R1242S001A-E2-FE Specifications
Type Description
Series:R1242S
Package:Tape & Reel (TR)
Part Status:Active
Function:Step-Down
Output Configuration:Positive
Topology:Buck
Output Type:Adjustable
Number of Outputs:1
Voltage - Input (Min):5V
Voltage - Input (Max):30V
Voltage - Output (Min/Fixed):0.8V
Voltage - Output (Max):15V
Current - Output:3A
Frequency - Switching:330kHz ~ 1MHz
Synchronous Rectifier:Yes
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package:8-HSOP-E
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT XC9257A2AEMR-G

XC9257A2AEMR-G

1A COT CONTROL SYNCHRONOUS STEP-
HOT XC9141D42CMR-G

XC9141D42CMR-G

0.8A SYNCHRONOUS STEP-UP DC/DC C

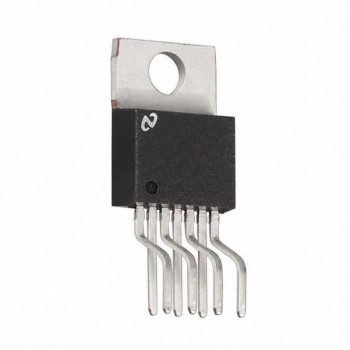

HOT LM2676T-ADJ
