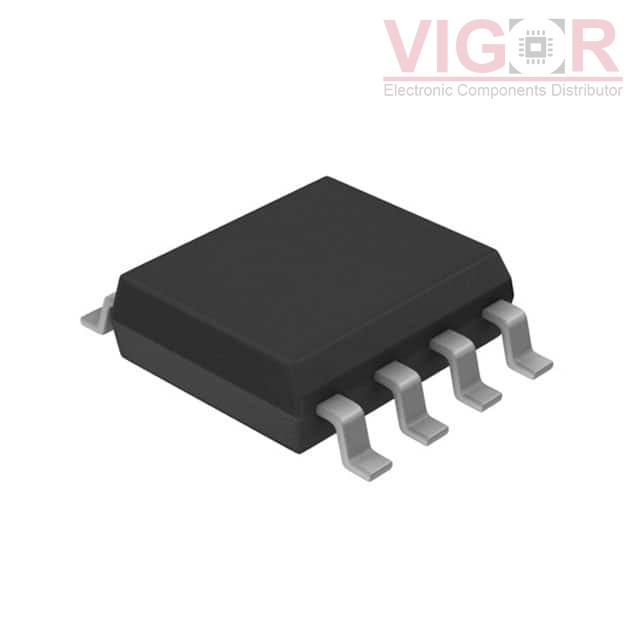

LV5809MX-TLM-H

Part No :: LV5809MX-TLM-H

Manufacturer: VIGOR

VIGOR # :: 3894882

Description: STEP-DOWN SWITCHING REGULATOR

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

DataSheet: LV5809MX-TLM-H PDF

Country of origin: -

Date code: -

LV5809MX-TLM-H Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Output Type:	Adjustable
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	18V
Voltage - Output (Min/Fixed):	0.8V
Voltage - Output (Max):	14.4V
Current - Output:	2.5A
Frequency - Switching:	330kHz
Synchronous Rectifier:	No
Operating Temperature:	-20°C ~ 80°C (TA)
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package:	8-MFP

Alternative Products

Part Number	Manufacturer & Description	Compare
LV5857MX-TLM-H Match 74%	VIGOR STEP DOWN SWITCHING REGULATOR	LV5809MX-TLM-H vs LV5857MX-TLM-H
LV5807MX-TLM-H Match 74%	VIGOR STEP-DOWN SWITCHING REGULATOR	LV5809MX-TLM-H vs LV5807MX-TLM-H
LV58061MX-TLM-H Match 74%	VIGOR STEP-DOWN SWITCHING REGULATOR	LV5809MX-TLM-H vs LV58061MX-TLM-H
LV58063MX-TLM-H Match 74%	VIGOR STEP-DOWN SWITCHING REGULATOR	LV5809MX-TLM-H vs LV58063MX-TLM-H
LV5856MX-TLM-H Match 74%	VIGOR STEP-DOWN SWITCHING REGULATOR	LV5809MX-TLM-H vs LV5856MX-TLM-H
LV5876MX-TLM-H Match 68%	Sanyo Semiconductor/ON Semiconductor IC REG BUCK ADJUSTABLE 2A 8MFP	LV5809MX-TLM-H vs LV5876MX-TLM-H
