LV58063MX-TLM-H

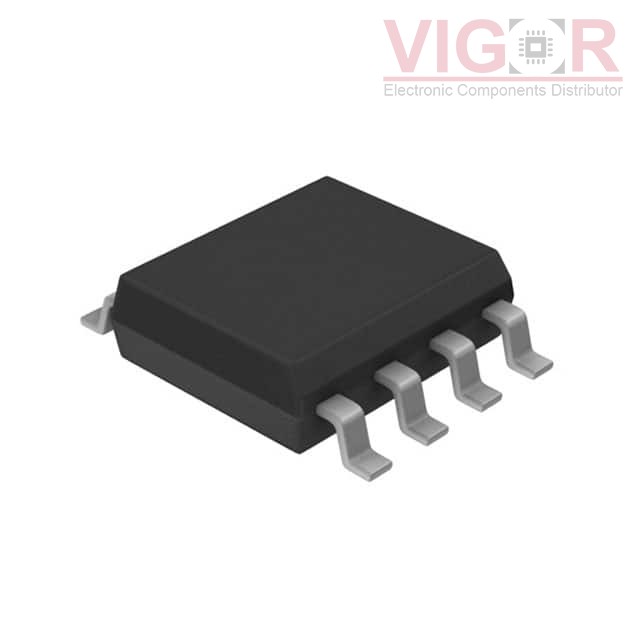

Image is for reference,
please contact us to get the real picture

Part No :: LV58063MX-TLM-H

Manufacturer: VIGOR

Description: STEP-DOWN SWITCHING REGULATOR

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

Shipped from: HK warehouse

Expected Shipping Date: Nov 04 - Nov 08 2025

DataSheet: LV58063MX-TLM-H PDF

Availability: 7000 pieces

Unit Price: ~~$0.61000~~

Current price of LV58063MX-TLM-H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

LV58063MX-TLM-H Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Output Type:	Adjustable
Number of Outputs:	1
Voltage - Input (Min):	8V
Voltage - Input (Max):	28V
Voltage - Output (Min/Fixed):	0.8V
Voltage - Output (Max):	22.4V
Current - Output:	3A
Frequency - Switching:	370kHz
Synchronous Rectifier:	Yes
Operating Temperature:	-20°C ~ 80°C (TA)
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package:	8-MFP

Please confirm the specifications of the products when ordering.
