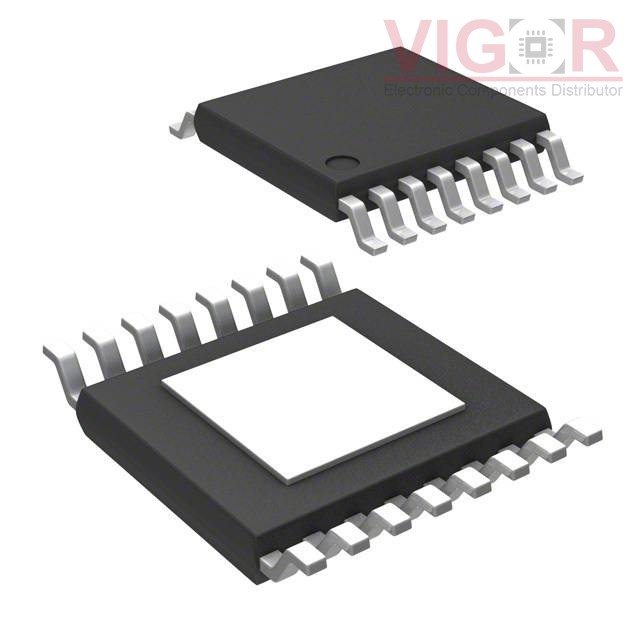

LM2696MXA

Part No :: LM2696MXA

Manufacturer: VIGOR

VIGOR # :: 3898829

Description: LM2696 3A, CONSTANT ON TIME BUCK

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

DataSheet: LM2696MXA PDF

Country of origin: -

Date code: -

LM2696MXA Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Output Type:	Adjustable
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	24V
Voltage - Output (Min/Fixed):	1.254V
Voltage - Output (Max):	20V
Current - Output:	3A
Frequency - Switching:	100kHz ~ 500kHz
Synchronous Rectifier:	No
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	16-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package:	16-HTSSOP

Alternative Products

Part Number	Manufacturer & Description	Compare
LM536035QPWPTQ1 Match 100%	Texas Instruments IC REG BUCK 5V 3A 16HTSSOP	LM2696MXA vs LM536035QPWPTQ1
LM536035QPWPRQ1 Match 100%	Texas Instruments IC REG BUCK 5V 3A 16HTSSOP	LM2696MXA vs LM536035QPWPRQ1
LM20133MH/NOPB Match 100%	Texas Instruments IC REG BUCK ADJ 3A 16HTSSOP	LM2696MXA vs LM20133MH/NOPB
LM43603PWPT Match 100%	Texas Instruments IC REG BUCK ADJ 3A 16HTSSOP	LM2696MXA vs LM43603PWPT
LM20123MHE/NOPB Match 100%	VIGOR LM20123 2.95-5.5V, 3A, CURRENT M	LM2696MXA vs LM20123MHE/NOPB
LM20133MHE/NOPB Match 100%	Texas Instruments IC REG BUCK ADJ 3A 16HTSSOP	LM2696MXA vs LM20133MHE/NOPB
