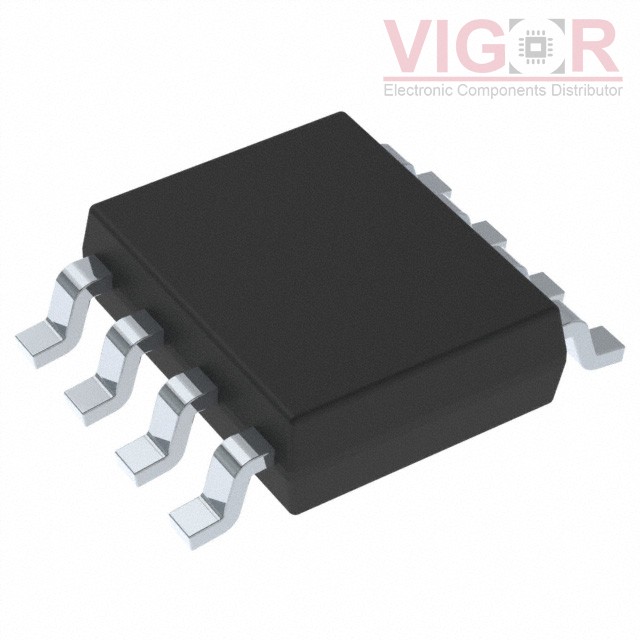

TPS54560BQDDAQ1

Part No :: TPS54560BQDDAQ1

Manufacturer: Texas Instruments

VIGOR # :: 3899260

Description: IC REG BCK SPLIT RAIL ADJ 8SOPWR

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

DataSheet: TPS54560BQDDAQ1 PDF

Country of origin: -

Date code: -

TPS54560BQDDAQ1 Specifications

Type	Description
Series:	Automotive, AEC-Q100, Eco-Mode™
Package:	Tube
Part Status:	Active
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck, Split Rail
Output Type:	Adjustable
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	60V
Voltage - Output (Min/Fixed):	0.8V
Voltage - Output (Max):	58.8V
Current - Output:	5A
Frequency - Switching:	100kHz ~ 2.5MHz
Synchronous Rectifier:	No
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	8-PowerSOIC (0.154", 3.90mm Width)
Supplier Device Package:	8-SO PowerPad
