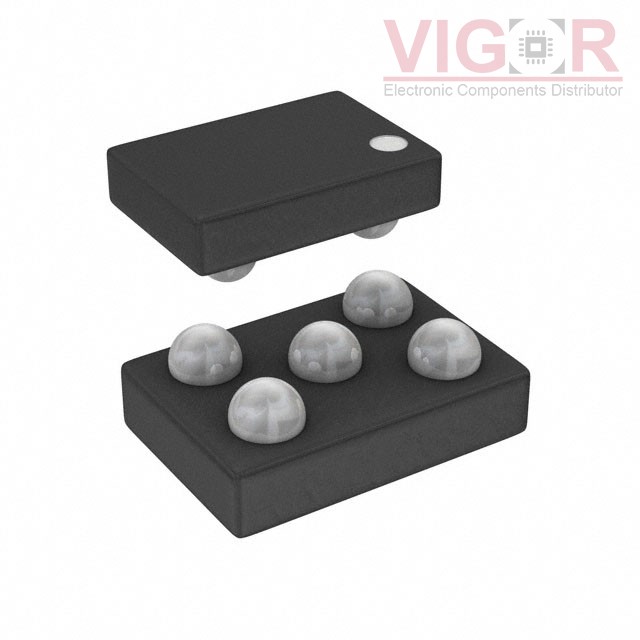

ADP2109ACBZ-1.0-R7

Part No :: ADP2109ACBZ-1.0-R7

Manufacturer: VIGOR

VIGOR # :: 3900896

Description: 600MA, 3MHZ, STEP-DOWN CONVERTER

Catalog: PMIC - Voltage Regulators - DC DC Switching Regulators

DataSheet: ADP2109ACBZ-1.0-R7 PDF

Country of origin: -

Date code: -

ADP2109ACBZ-1.0-R7 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Function:	Step-Down
Output Configuration:	Positive
Topology:	Buck
Output Type:	Fixed
Number of Outputs:	1
Voltage - Input (Min):	2.3V
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	1V
Voltage - Output (Max):	-
Current - Output:	600mA
Frequency - Switching:	3MHz
Synchronous Rectifier:	Yes
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Package / Case:	5-WFBGA, WLCSP
Supplier Device Package:	5-WLCSP
