CS8147YTHA5

CS8147YTHA5

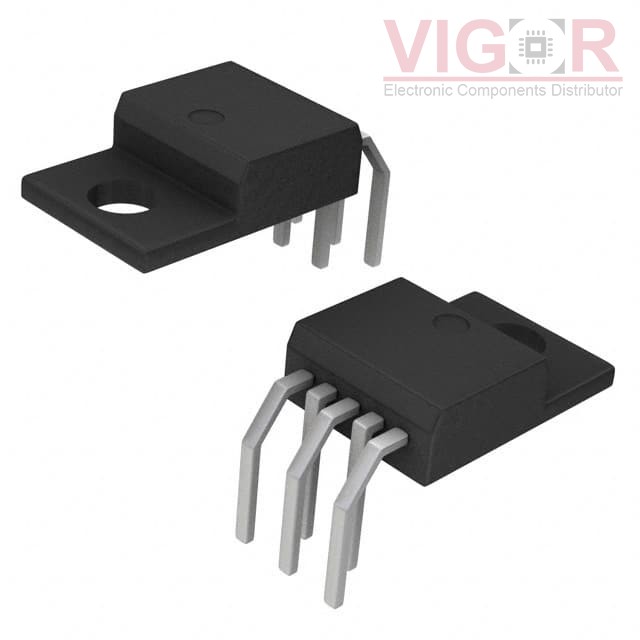

Image is for reference,
please contact us to get the real picture

Part No :

CS8147YTHA5

Manufacturer
VIGOR
Description
IC REG LIN 10V/5V 500/70MA TO220
Catalog
PMIC - Voltage Regulators - Linear
Shipped from
HK warehouse
Expected Shipping Date
Oct 08 - Oct 12 2025
DataSheet
CS8147YTHA5 PDF
Availability
2150 pieces
Unit Price
$1.26000

Current price of CS8147YTHA5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

CS8147YTHA5 Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
Output Configuration:Positive
Output Type:Fixed
Number of Regulators:2
Voltage - Input (Max):26V
Voltage - Output (Min/Fixed):10V, 5V
Voltage - Output (Max):-
Voltage Dropout (Max):0.7V @ 500mA, 2.5V @ 70mA
Current - Output:500mA, 70mA
Current - Quiescent (Iq):7 mA
Current - Supply (Max):120 mA
PSRR:-
Control Features:Enable
Protection Features:Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
Operating Temperature:-40°C ~ 125°C
Mounting Type:Through Hole
Package / Case:TO-220-5 Formed Leads
Supplier Device Package:TO-220-5 Horizontal
