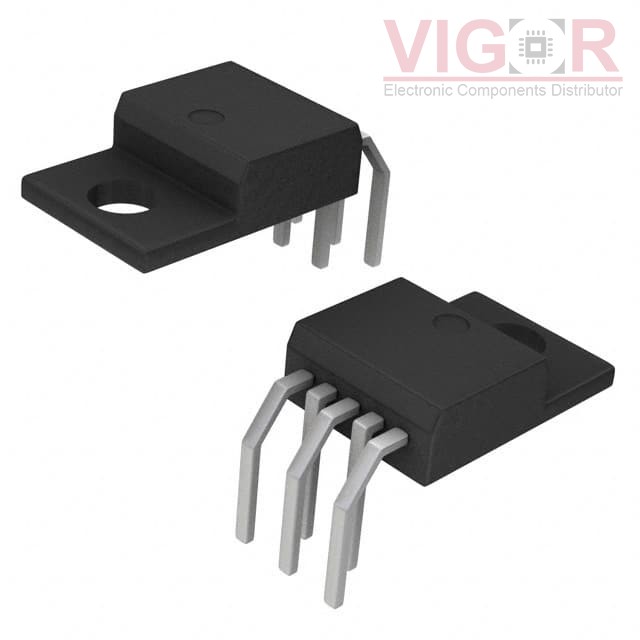

CS8101YTHA5G

Part No :: CS8101YTHA5G

Manufacturer: VIGOR

Description: IC REG LINEAR 5V 100MA TO220-5

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: CS8101YTHA5G PDF

Availability: 250 pieces

Current price of CS8101YTHA5G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CS8101YTHA5G Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	30V
Voltage - Output (Min/Fixed):	5V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.6V @ 100mA
Current - Output:	100mA
Current - Quiescent (Iq):	140 µA
Current - Supply (Max):	20 mA
PSRR:	75dB (120Hz)
Control Features:	Enable, Reset
Protection Features:	Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	TO-220-5 Formed Leads
Supplier Device Package:	TO-220-5 Horizontal
