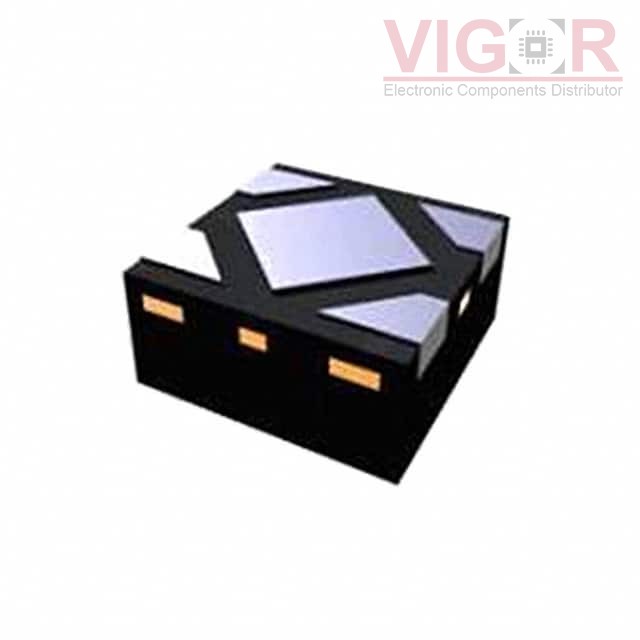

LD6805K/13H,115

Part No :: LD6805K/13H,115

Manufacturer: VIGOR

VIGOR # :: 3744184

Description: IC REG LIN 1.3V 150MA DFN1010C-4

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: LD6805K/13H,115 PDF

Country of origin: -

Date code: -

LD6805K/13H,115 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	1.3V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.25V @ 150mA
Current - Output:	150mA
Current - Quiescent (Iq):	35 µA
Current - Supply (Max):	150 µA
PSRR:	75dB (1kHz)
Control Features:	Enable
Protection Features:	Over Current, Transient Voltage
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	4-UDFN Exposed Pad
Supplier Device Package:	DFN1010C-4

Alternative Products

Part Number	Manufacturer & Description	Compare
LD6805K/33H,115 Match 100%	VIGOR IC REG LIN 3.3V 150MA DFN1010C-4	LD6805K/13H,115 vs LD6805K/33H,115
LD6805K/28H,115 Match 100%	VIGOR IC REG LIN 2.8V 150MA DFN1010C-4	LD6805K/13H,115 vs LD6805K/28H,115
LD6805K/36P,115 Match 100%	VIGOR IC REG LIN 3.6V 150MA DFN1010C-4	LD6805K/13H,115 vs LD6805K/36P,115
LD6805K/30H,115 Match 100%	VIGOR IC REG LIN 3V 150MA DFN1010C-4	LD6805K/13H,115 vs LD6805K/30H,115
LD6805K/33P,115 Match 100%	VIGOR IC REG LIN 3.3V 150MA DFN1010C-4	LD6805K/13H,115 vs LD6805K/33P,115
LD6805K/18H,115 Match 100%	VIGOR IC REG LIN 1.8V 150MA DFN1010C-4	LD6805K/13H,115 vs LD6805K/18H,115
