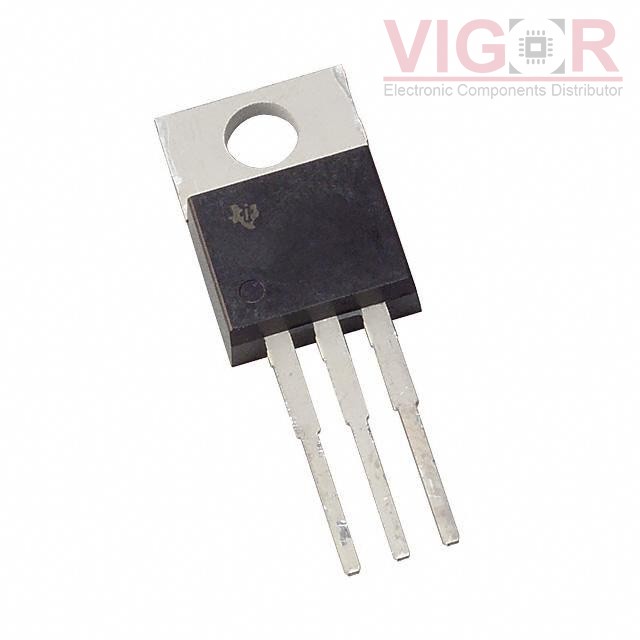

TL780-15CKC

Part No :: TL780-15CKC

Manufacturer: VIGOR

VIGOR # :: 3745466

Description: IC REG LINEAR 15V 1.5A TO220-3

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: TL780-15CKC PDF

Country of origin: -

Date code: -

TL780-15CKC Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	30V
Voltage - Output (Min/Fixed):	15V
Voltage - Output (Max):	-
Voltage Dropout (Max):	2V @ 1A
Current - Output:	1.5A
Current - Quiescent (Iq):	-
Current - Supply (Max):	-
PSRR:	85dB (120Hz)
Control Features:	-
Protection Features:	Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature:	0°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	TO-220-3
Supplier Device Package:	TO-220-3

Alternative Products

Part Number	Manufacturer & Description	Compare
UA7805CKCSE3 Match 100%	Texas Instruments IC REG LINEAR 5V 1.5A TO220-3	TL780-15CKC vs UA7805CKCSE3
UA7805CKCT Match 100%	Texas Instruments IC REG LINEAR 5V 1.5A TO220-3	TL780-15CKC vs UA7805CKCT
UA7824CKCSE3 Match 100%	Texas Instruments IC REG LINEAR 24V 1.5A TO220-3	TL780-15CKC vs UA7824CKCSE3
UA7808CKCT Match 100%	Texas Instruments IC REG LINEAR 8V 1.5A TO220-3	TL780-15CKC vs UA7808CKCT
UA7815CKCT Match 100%	Texas Instruments IC REG LINEAR 15V 1.5A TO220-3	TL780-15CKC vs UA7815CKCT
TL780-15KCS Match 100%	Texas Instruments IC REG LINEAR 15V 1.5A TO220-3	TL780-15CKC vs TL780-15KCS
