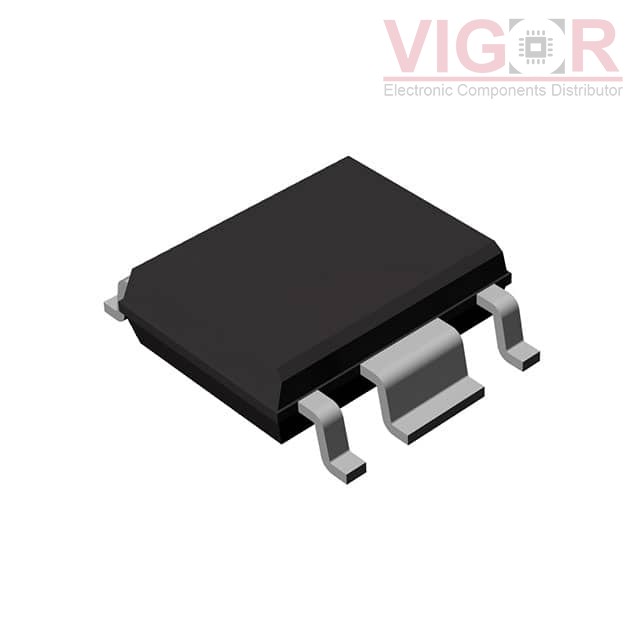

R1514S090B-E2-JE

Part No :: R1514S090B-E2-JE

Manufacturer: RICOH Electronic Devices Co., LTD.

VIGOR # :: 3748173

Description: IC REG LINEAR 9V 150MA 6HSOP

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: R1514S090B-E2-JE PDF

Country of origin: -

Date code: -

R1514S090B-E2-JE Specifications

Type	Description
Series:	Automotive, AEC-Q100, R1514x
Package:	Tape & Reel (TR)
Part Status:	Active
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	36V
Voltage - Output (Min/Fixed):	9V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.4V @ 150mA
Current - Output:	150mA
Current - Quiescent (Iq):	20 µA
Current - Supply (Max):	-
PSRR:	-
Control Features:	Enable
Protection Features:	Over Current, Over Temperature, Short Circuit
Operating Temperature:	-40°C ~ 105°C (TA)
Mounting Type:	Surface Mount
Package / Case:	6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins
Supplier Device Package:	6-HSOP-J

Alternative Products

Part Number	Manufacturer & Description	Compare
R1514S120B-E2-JE Match 100%	RICOH Electronic Devices Co., LTD. IC REG LINEAR 12V 150MA 6HSOP	R1514S090B-E2-JE vs R1514S120B-E2-JE
R1514S050B-E2-JE Match 100%	RICOH Electronic Devices Co., LTD. IC REG LINEAR 5V 150MA 6HSOP	R1514S090B-E2-JE vs R1514S050B-E2-JE
R1514S080B-E2-JE Match 100%	RICOH Electronic Devices Co., LTD. IC REG LINEAR 8V 150MA 6HSOP	R1514S090B-E2-JE vs R1514S080B-E2-JE

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 9328

Shipped from

HK warehouse

Expected Shipping Date

Aug 04 - Aug 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.1989~~	~~$1.20~~

Current price of R1514S090B-E2-JE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
