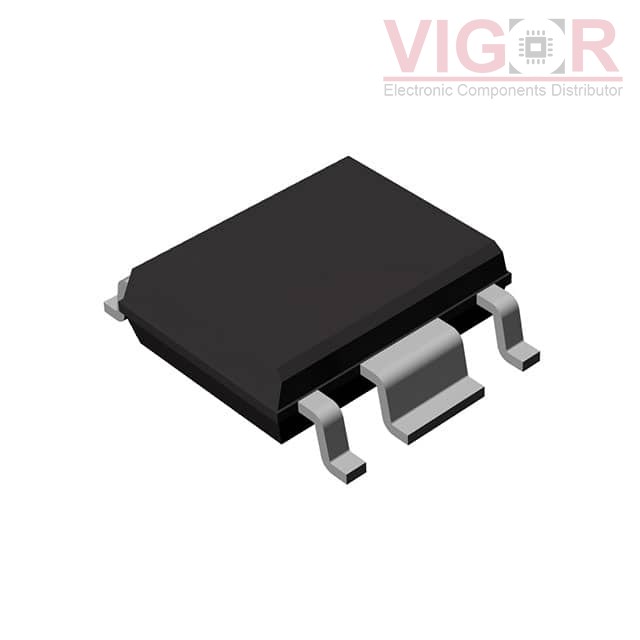

R1514S120B-E2-JE

Part No :: R1514S120B-E2-JE

Manufacturer: RICOH Electronic Devices Co., LTD.

Description: IC REG LINEAR 12V 150MA 6HSOP

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: R1514S120B-E2-JE PDF

Availability: 7487 pieces

Current price of R1514S120B-E2-JE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

R1514S120B-E2-JE Specifications

Type	Description
Series:	Automotive, AEC-Q100, R1514x
Package:	Tape & Reel (TR)
Part Status:	Active
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	36V
Voltage - Output (Min/Fixed):	12V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.4V @ 150mA
Current - Output:	150mA
Current - Quiescent (Iq):	20 µA
Current - Supply (Max):	-
PSRR:	-
Control Features:	Enable
Protection Features:	Over Current, Over Temperature, Short Circuit
Operating Temperature:	-40°C ~ 105°C (TA)
Mounting Type:	Surface Mount
Package / Case:	6-SOIC Variation (0.154", 3.90mm Width), 4 Leads + 2 Fins
Supplier Device Package:	6-HSOP-J
