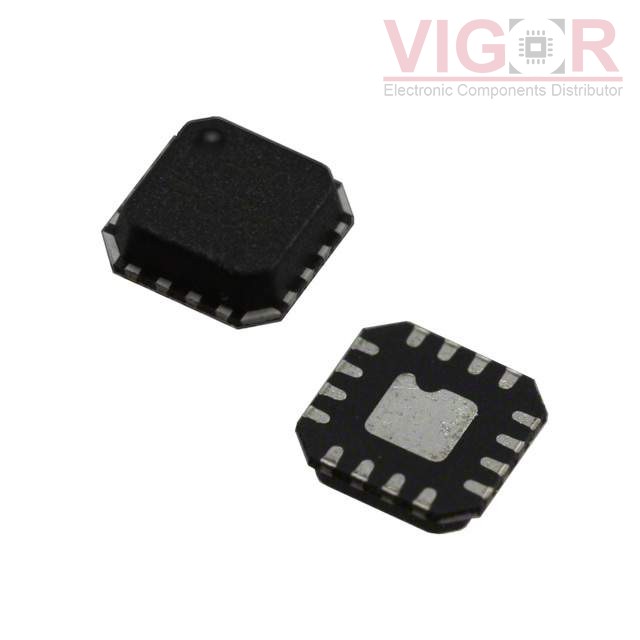

ADP1764ACPZ-1.2-R7

Part No :: ADP1764ACPZ-1.2-R7

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: IC REG LINEAR 1.2V 4A 16LFCSP

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: ADP1764ACPZ-1.2-R7 PDF

Availability: 4062 pieces

Current price of ADP1764ACPZ-1.2-R7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ADP1764ACPZ-1.2-R7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	1.98V
Voltage - Output (Min/Fixed):	1.2V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.075V @ 4A
Current - Output:	4A
Current - Quiescent (Iq):	17 mA
Current - Supply (Max):	23 mA
PSRR:	69dB ~ 35dB (10kHz ~ 1MHz)
Control Features:	Enable, Power Good, Soft Start
Protection Features:	Current Limit, Thermal Overload
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	16-WFQFN Exposed Pad, CSP
Supplier Device Package:	16-LFCSP (3x3)

Please confirm the specifications of the products when ordering.
