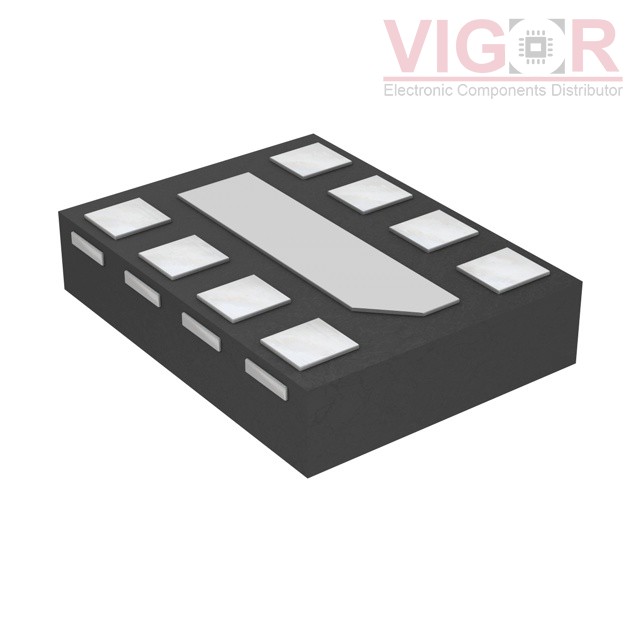

AP7344D-1815RH4-7

Part No :: AP7344D-1815RH4-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: IC REG LIN 1.5V/1.8V X2DFN1612-8

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: AP7344D-1815RH4-7 PDF

Availability: 2323 pieces

Current price of AP7344D-1815RH4-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AP7344D-1815RH4-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	2
Voltage - Input (Max):	5.25V
Voltage - Output (Min/Fixed):	1.5V, 1.8V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.44V @ 300mA, 0.39V @ 300ma
Current - Output:	300mA, 300mA
Current - Quiescent (Iq):	140 µA
Current - Supply (Max):	-
PSRR:	75dB (1kHz)
Control Features:	Enable
Protection Features:	Over Current
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	8-XFDFN Exposed Pad
Supplier Device Package:	X2-DFN1612-8

Please confirm the specifications of the products when ordering.
