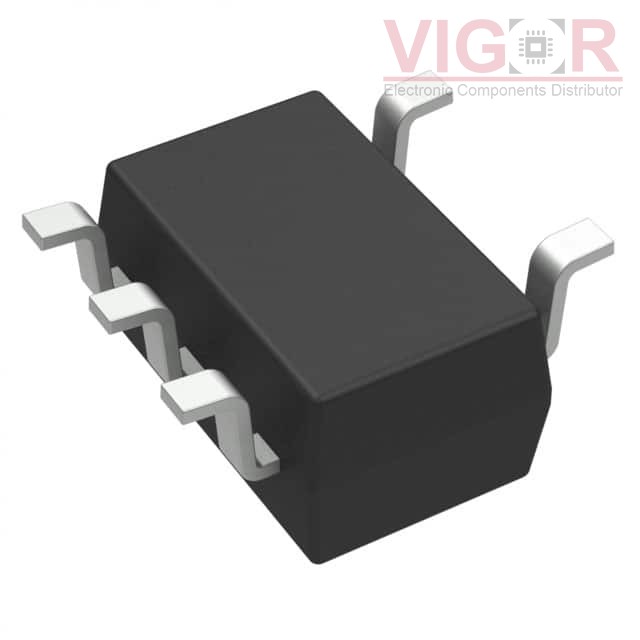

NCV4294CSN33T1G

Part No :: NCV4294CSN33T1G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3759671

Description: IC REG LINEAR 3.3V 30MA 5TSOP

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: NCV4294CSN33T1G PDF

Country of origin: -

Date code: -

NCV4294CSN33T1G Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	45V
Voltage - Output (Min/Fixed):	3.3V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.25V @ 20mA
Current - Output:	30mA
Current - Quiescent (Iq):	170 µA
Current - Supply (Max):	4 mA
PSRR:	60dB (100Hz)
Control Features:	-
Protection Features:	Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SOT-23-5 Thin, TSOT-23-5
Supplier Device Package:	5-TSOP

Alternative Products

Part Number	Manufacturer & Description	Compare
NCV4294CSN50T1G Match 100%	Sanyo Semiconductor/ON Semiconductor IC REG LINEAR 5V 30MA 5TSOP	NCV4294CSN33T1G vs NCV4294CSN50T1G
NCV4295CSN33T1G Match 100%	Sanyo Semiconductor/ON Semiconductor IC REG LINEAR 3.3V 30MA 5TSOP	NCV4294CSN33T1G vs NCV4295CSN33T1G
NCV4295CSN50T1G Match 100%	Sanyo Semiconductor/ON Semiconductor IC REG LINEAR 5V 30MA 5TSOP	NCV4294CSN33T1G vs NCV4295CSN50T1G
NCV4296-2CSN50T1G Match 100%	Sanyo Semiconductor/ON Semiconductor IC REG LINEAR 5V 30MA 5TSOP	NCV4294CSN33T1G vs NCV4296-2CSN50T1G
NCV4296-2CSN33T1G Match 100%	Sanyo Semiconductor/ON Semiconductor IC REG LINEAR 3.3V 30MA 5TSOP	NCV4294CSN33T1G vs NCV4296-2CSN33T1G

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 344

Shipped from

HK warehouse

Expected Shipping Date

Aug 11 - Aug 15 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.6300~~	~~$0.63~~
3000	~~$0.6300~~	~~$1 890.00~~

Current price of NCV4294CSN33T1G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

S-1137D32-M5T1U

IC REG LINEAR 3.2V 300MA SOT23-5

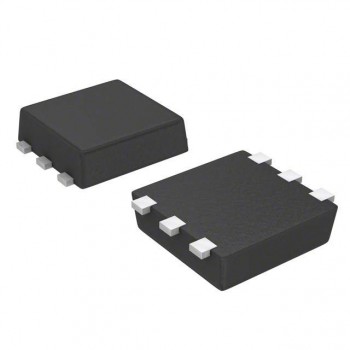

S-1721A2818-I6T1U

IC REG LIN 1.8V/2.8V 150MA SNT6A

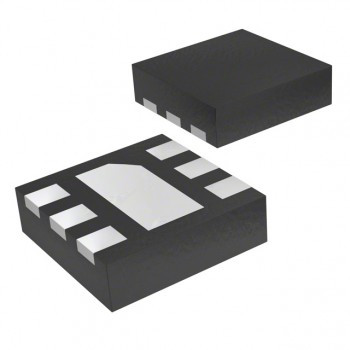

NCP718AMT330TBG
