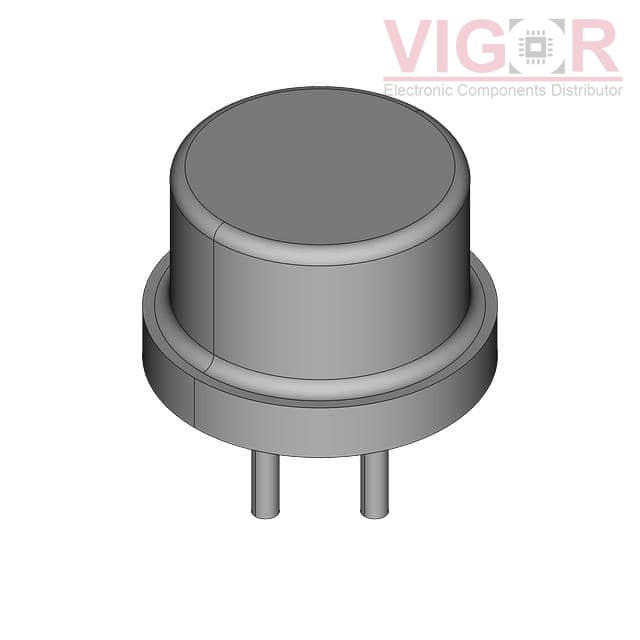

LM309H

Part No :: LM309H

Manufacturer: VIGOR

VIGOR # :: 3759909

Description: LM309 1A 5V OUTPUT LINEAR REGULA

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: LM309H PDF

Country of origin: -

Date code: -

LM309H Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	25V
Voltage - Output (Min/Fixed):	5.05V
Voltage - Output (Max):	-
Voltage Dropout (Max):	-
Current - Output:	1A
Current - Quiescent (Iq):	5.2 mA
Current - Supply (Max):	10 mA
PSRR:	-
Control Features:	-
Protection Features:	Over Temperature
Operating Temperature:	0°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	TO-205AD, TO-39-3 Metal Can
Supplier Device Package:	TO-39-3
