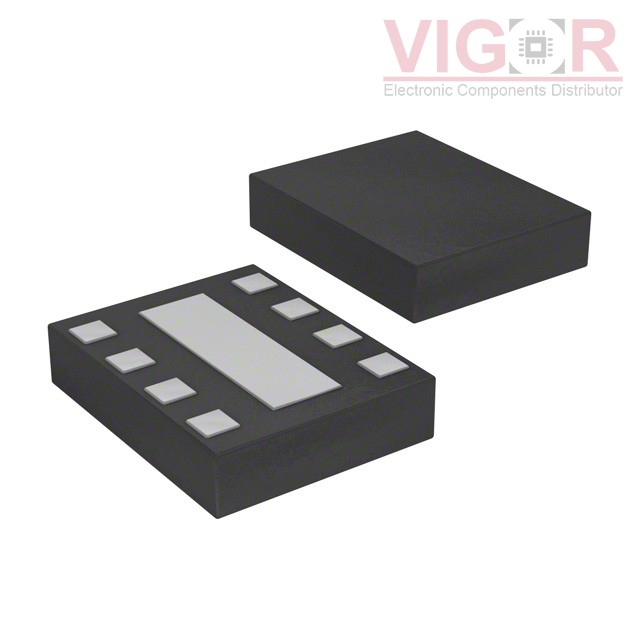

NCP706MX22TAG

Part No :: NCP706MX22TAG

Manufacturer: VIGOR

Description: IC REG LINEAR 2.2V 1A 8XDFN

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: NCP706MX22TAG PDF

Availability: 958 pieces

Current price of NCP706MX22TAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NCP706MX22TAG Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	2.2V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.3V @ 1A
Current - Output:	1A
Current - Quiescent (Iq):	230 µA
Current - Supply (Max):	-
PSRR:	70dB ~ 60dB (1kHz ~ 10kHz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO)
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	8-XFDFN Exposed Pad
Supplier Device Package:	8-XDFN (1.6x1.2)

Please confirm the specifications of the products when ordering.
