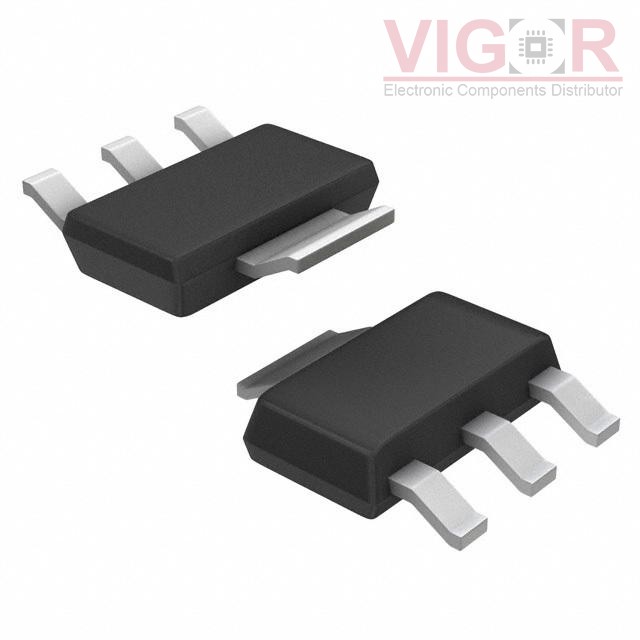

LDL1117S30R

Part No :: LDL1117S30R

Manufacturer: STMicroelectronics

Description: IC REG LINEAR 3V 1.2A SOT223

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: LDL1117S30R PDF

Availability: 9892 pieces

Current price of LDL1117S30R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LDL1117S30R Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	18V
Voltage - Output (Min/Fixed):	3V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.6V @ 1.2A
Current - Output:	1.2A
Current - Quiescent (Iq):	500 µA
Current - Supply (Max):	-
PSRR:	87dB ~ 65dB (120Hz ~ 100kHz)
Control Features:	-
Protection Features:	Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-261-4, TO-261AA
Supplier Device Package:	SOT-223
