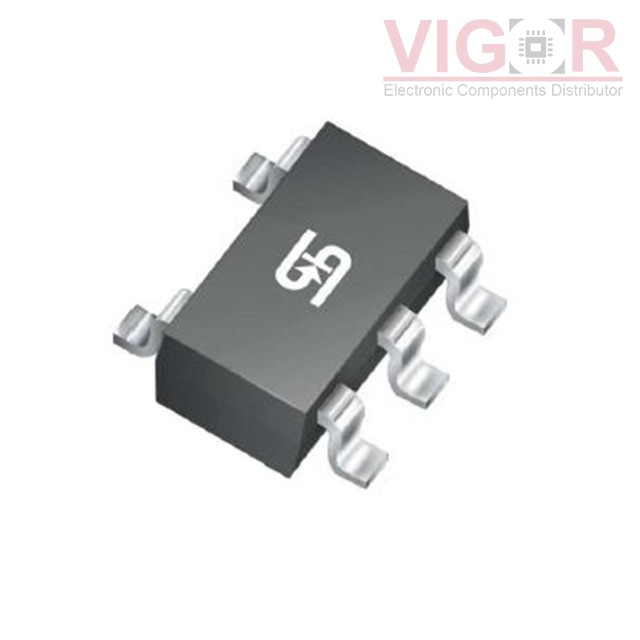

TS5205CX525 RFG

Part No :: TS5205CX525 RFG

Manufacturer: TSC (Taiwan Semiconductor)

VIGOR # :: 3761634

Description: IC REG LINEAR 2.5V 150MA SOT25

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: TS5205CX525 RFG PDF

Country of origin: -

Date code: -

TS5205CX525 RFG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	16V
Voltage - Output (Min/Fixed):	2.5V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.275V @ 150mA
Current - Output:	150mA
Current - Quiescent (Iq):	125 µA
Current - Supply (Max):	1.9 mA
PSRR:	75dB (100Hz)
Control Features:	Current Limit, Enable
Protection Features:	Over Temperature
Operating Temperature:	-40°C ~ 125°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	SC-74A, SOT-753
Supplier Device Package:	SOT-25

Alternative Products

Part Number	Manufacturer & Description	Compare
TS5205CX533 RFG Match 100%	TSC (Taiwan Semiconductor) IC REG LINEAR 3.3V 150MA SOT25	TS5205CX525 RFG vs TS5205CX533 RFG
TS5205CX550 RFG Match 100%	TSC (Taiwan Semiconductor) IC REG LINEAR 5V 150MA SOT25	TS5205CX525 RFG vs TS5205CX550 RFG
TS5205CX5 RFG Match 100%	TSC (Taiwan Semiconductor) IC REG LIN POS ADJ 150MA SOT25	TS5205CX525 RFG vs TS5205CX5 RFG

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 8050

Shipped from

HK warehouse

Expected Shipping Date

Nov 11 - Nov 15 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$0.2241~~	~~$0.22~~
12000	~~$0.1519~~	~~$1 823.16~~

Current price of TS5205CX525 RFG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
