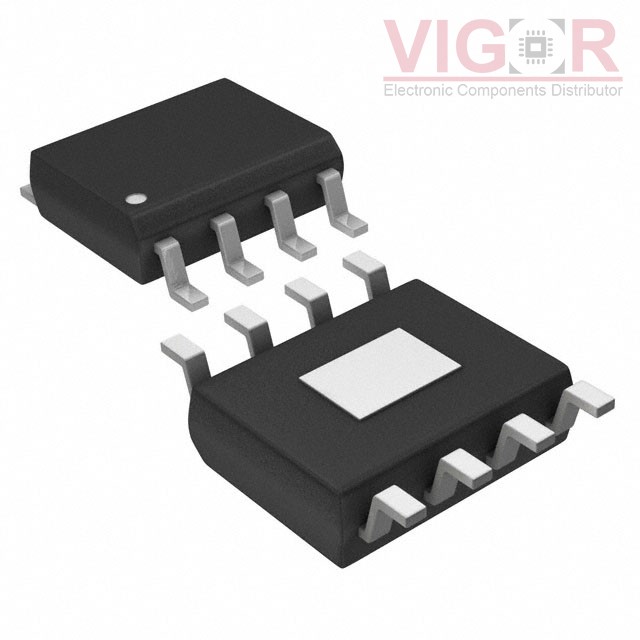

NCV47710PDAJR2G

Part No :: NCV47710PDAJR2G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 3761707

Description: IC REG LIN POS ADJ 350MA 8SOIC

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: NCV47710PDAJR2G PDF

Country of origin: -

Date code: -

NCV47710PDAJR2G Specifications

Type	Description
Series:	Automotive, AEC-Q100
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Output Configuration:	Positive
Output Type:	Adjustable
Number of Regulators:	1
Voltage - Input (Max):	40V
Voltage - Output (Min/Fixed):	5V
Voltage - Output (Max):	20V
Voltage Dropout (Max):	0.5V @ 150mA
Current - Output:	350mA
Current - Quiescent (Iq):	230 µA
Current - Supply (Max):	50 mA
PSRR:	70dB (100Hz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature, Reverse Polarity
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Surface Mount
Package / Case:	8-SOIC (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package:	8-SOIC-EP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 511

Shipped from

HK warehouse

Expected Shipping Date

Jan 24 - Jan 28 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.48~~	~~$2.48~~
2500	~~$0.97~~	~~$2 430.00~~
5000	~~$0.94~~	~~$4 680.00~~

Current price of NCV47710PDAJR2G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

TPS79912YZUT

IC REG LINEAR 1.2V 200MA 5DSBGA

AP7173-SPG-13

IC REG LINEAR POS ADJ 1.5A 8SO

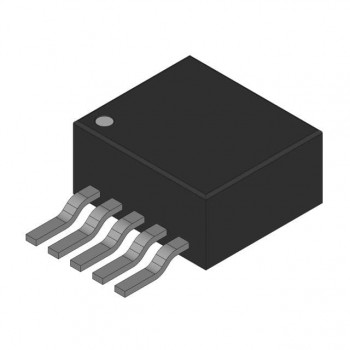

LP3966ES-1.8-TI
