NJM7809FA

Part No :: NJM7809FA

Manufacturer: New Japan Radio (NJR)

VIGOR # :: 3763362

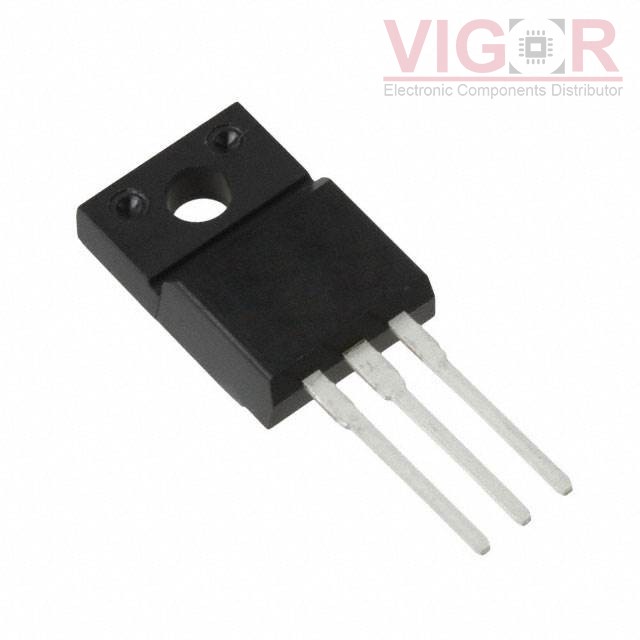

Description: IC REG LINEAR 9V 1.5A TO220F

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: NJM7809FA PDF

Country of origin: -

Date code: -

NJM7809FA Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	35V
Voltage - Output (Min/Fixed):	9V
Voltage - Output (Max):	-
Voltage Dropout (Max):	-
Current - Output:	1.5A
Current - Quiescent (Iq):	6 mA
Current - Supply (Max):	-
PSRR:	72dB (120Hz)
Control Features:	-
Protection Features:	Over Temperature, Short Circuit
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	TO-220-3 Full Pack
Supplier Device Package:	TO-220F

Alternative Products

Part Number	Manufacturer & Description	Compare
NJM7808FA Match 100%	New Japan Radio (NJR) IC REG LINEAR 8V 1.5A TO220F	NJM7809FA vs NJM7808FA
NJM7815FA Match 100%	New Japan Radio (NJR) IC REG LINEAR 15V 1.5A TO220F	NJM7809FA vs NJM7815FA
NJM7820FA Match 100%	New Japan Radio (NJR) IC REG LINEAR 20V 1.5A TO220F	NJM7809FA vs NJM7820FA
NJM7812FA Match 100%	New Japan Radio (NJR) IC REG LINEAR 12V 1.5A TO220F	NJM7809FA vs NJM7812FA
NJM7806FA Match 100%	New Japan Radio (NJR) IC REG LINEAR 6V 1.5A TO220F	NJM7809FA vs NJM7806FA
NJM7805FA Match 100%	New Japan Radio (NJR) IC REG LINEAR 5V 1.5A TO220F	NJM7809FA vs NJM7805FA
