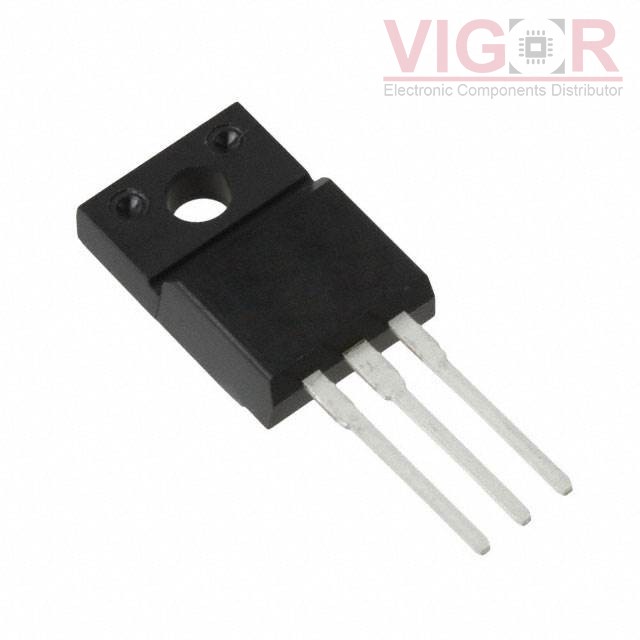

NJM7820FA

Part No :: NJM7820FA

Manufacturer: New Japan Radio (NJR)

VIGOR # :: 3759730

Description: IC REG LINEAR 20V 1.5A TO220F

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: NJM7820FA PDF

Country of origin: -

Date code: -

NJM7820FA Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	40V
Voltage - Output (Min/Fixed):	20V
Voltage - Output (Max):	-
Voltage Dropout (Max):	-
Current - Output:	1.5A
Current - Quiescent (Iq):	6 mA
Current - Supply (Max):	-
PSRR:	68dB (120Hz)
Control Features:	-
Protection Features:	Over Temperature, Short Circuit
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Through Hole
Package / Case:	TO-220-3 Full Pack
Supplier Device Package:	TO-220F
