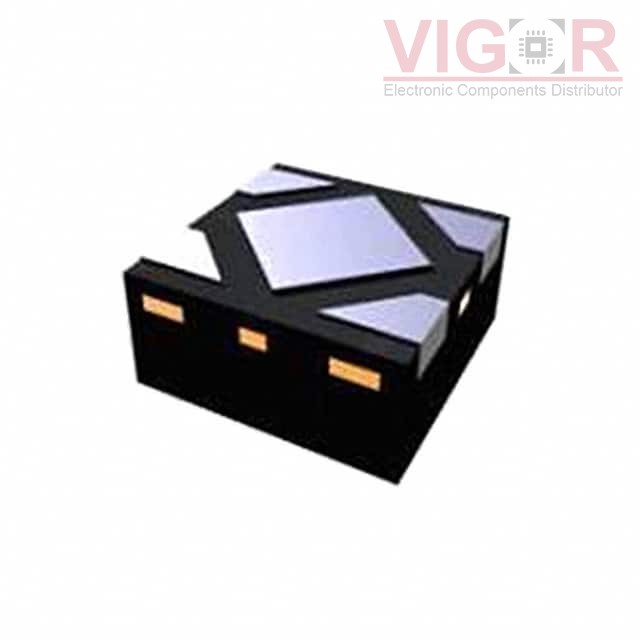

LD6805K/21P,115

Part No :: LD6805K/21P,115

Manufacturer: VIGOR

VIGOR # :: 3775810

Description: IC REG LIN 2.1V 150MA DFN1010C-4

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: LD6805K/21P,115 PDF

Country of origin: -

Date code: -

LD6805K/21P,115 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	5.5V
Voltage - Output (Min/Fixed):	2.1V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.25V @ 150mA
Current - Output:	150mA
Current - Quiescent (Iq):	35 µA
Current - Supply (Max):	150 µA
PSRR:	75dB (1kHz)
Control Features:	Enable
Protection Features:	Over Current, Transient Voltage
Operating Temperature:	-40°C ~ 85°C
Mounting Type:	Surface Mount
Package / Case:	4-UDFN Exposed Pad
Supplier Device Package:	DFN1010C-4

Alternative Products

Part Number	Manufacturer & Description	Compare
LD6805K/25P,115 Match 100%	VIGOR IC REG LIN 2.5V 150MA DFN1010C-4	LD6805K/21P,115 vs LD6805K/25P,115
LD6805K/16P,115 Match 100%	VIGOR IC REG LIN 1.6V 150MA DFN1010C-4	LD6805K/21P,115 vs LD6805K/16P,115
LD6805K/15P,115 Match 100%	VIGOR IC REG LIN 1.5V 150MA DFN1010C-4	LD6805K/21P,115 vs LD6805K/15P,115
LD6805K/31PX Match 100%	NXP Semiconductors IC REG LIN 3.1V 150MA DFN1010C-4	LD6805K/21P,115 vs LD6805K/31PX
LD6805K/15HX Match 100%	NXP Semiconductors IC REG LIN 1.5V 150MA DFN1010C-4	LD6805K/21P,115 vs LD6805K/15HX
LD6805K/21HX Match 100%	NXP Semiconductors IC REG LIN 2.1V 150MA DFN1010C-4	LD6805K/21P,115 vs LD6805K/21HX
