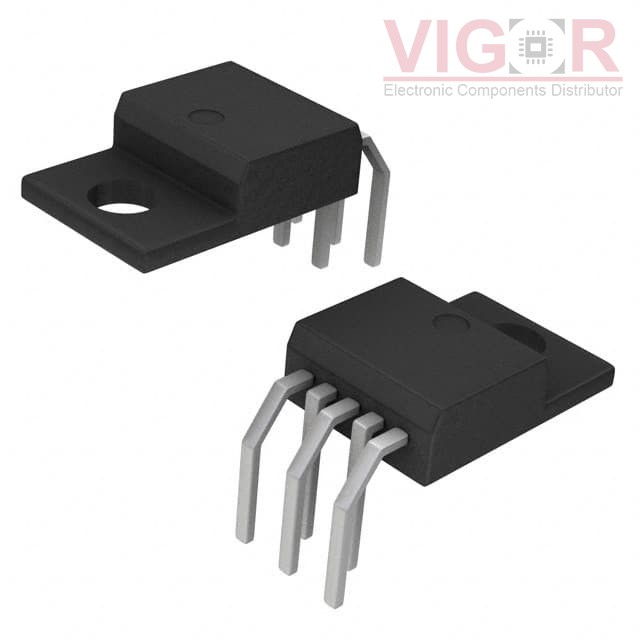

CS8122YTHA5G

Part No :: CS8122YTHA5G

Manufacturer: VIGOR

VIGOR # :: 3777032

Description: IC REG LINEAR 5V 750MA TO220-5

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: CS8122YTHA5G PDF

Country of origin: -

Date code: -

CS8122YTHA5G Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	26V
Voltage - Output (Min/Fixed):	5V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.6V @ 500mA
Current - Output:	750mA
Current - Quiescent (Iq):	70 mA
Current - Supply (Max):	100 mA
PSRR:	75dB (120Hz)
Control Features:	Reset
Protection Features:	Over Temperature, Over Voltage, Reverse Polarity, Short Circuit
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Through Hole
Package / Case:	TO-220-5 Formed Leads
Supplier Device Package:	TO-220-5 Horizontal

Alternative Products

Part Number	Manufacturer & Description	Compare
CS8122YTHA5 Match 100%	VIGOR IC REG LINEAR 5V 750MA TO220-5	CS8122YTHA5G vs CS8122YTHA5
CS8129YTHA5 Match 100%	Sanyo Semiconductor/ON Semiconductor IC REG LIN 5V 750MA TO220-5	CS8122YTHA5G vs CS8129YTHA5
CS8126-1YTHA5G Match 100%	Sanyo Semiconductor/ON Semiconductor IC REG LIN 5V 750MA TO220-5	CS8122YTHA5G vs CS8126-1YTHA5G
CS8129YTHA5G Match 100%	Sanyo Semiconductor/ON Semiconductor IC REG LIN 5V 750MA TO220-5	CS8122YTHA5G vs CS8129YTHA5G
CS8126-1YTHA5 Match 100%	Sanyo Semiconductor/ON Semiconductor IC REG LIN 5V 750MA TO220-5	CS8122YTHA5G vs CS8126-1YTHA5

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1195

Shipped from

HK warehouse

Expected Shipping Date

Aug 14 - Aug 18 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$1.3500~~	~~$1.35~~

Current price of CS8122YTHA5G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
