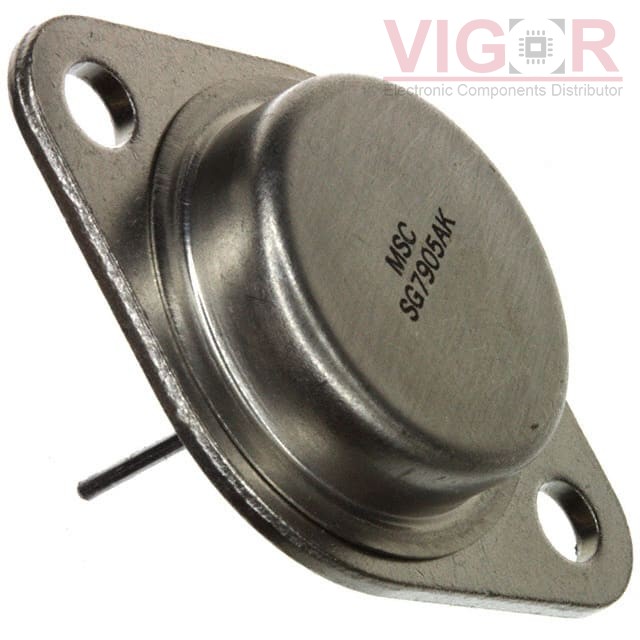

SG7905AK

Part No :: SG7905AK

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 4868328

Description: IC REG LINEAR -5V 1.5A TO204AD

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: SG7905AK PDF

Country of origin: -

Date code: -

SG7905AK Specifications

Type	Description
Series:	Military, MIL-STD-883
Package:	Bulk
Part Status:	Active
Output Configuration:	Negative
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	-35V
Voltage - Output (Min/Fixed):	-5V
Voltage - Output (Max):	-
Voltage Dropout (Max):	2.3V @ 500mA
Current - Output:	1.5A
Current - Quiescent (Iq):	2.5 mA
Current - Supply (Max):	-
PSRR:	54dB (120Hz)
Control Features:	-
Protection Features:	Over Current, Over Temperature, Thermal Shutdown
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Through Hole
Package / Case:	TO-204AA, TO-3
Supplier Device Package:	TO-204AD (TO-3)

Alternative Products

Part Number	Manufacturer & Description	Compare
SG7905K Match 100%	Roving Networks / Microchip Technology IC REG LINEAR -5V 1.5A TO204AD	SG7905AK vs SG7905K
SG7912K Match 100%	Roving Networks / Microchip Technology IC REG LINEAR -12V 1.5A TO204AD	SG7905AK vs SG7912K
SG7915AK Match 100%	Roving Networks / Microchip Technology IC REG LINEAR -15V 1.5A TO204AD	SG7905AK vs SG7915AK
SG7912AK Match 100%	Roving Networks / Microchip Technology IC REG LINEAR -12V 1.5A TO204AD	SG7905AK vs SG7912AK
SG7915K Match 100%	Roving Networks / Microchip Technology IC REG LINEAR -15V 1.5A TO204AD	SG7905AK vs SG7915K
SG7915K-883B Match 100%	Roving Networks / Microchip Technology IC REG LINEAR -15V 1.5A TO204AD	SG7905AK vs SG7915K-883B
