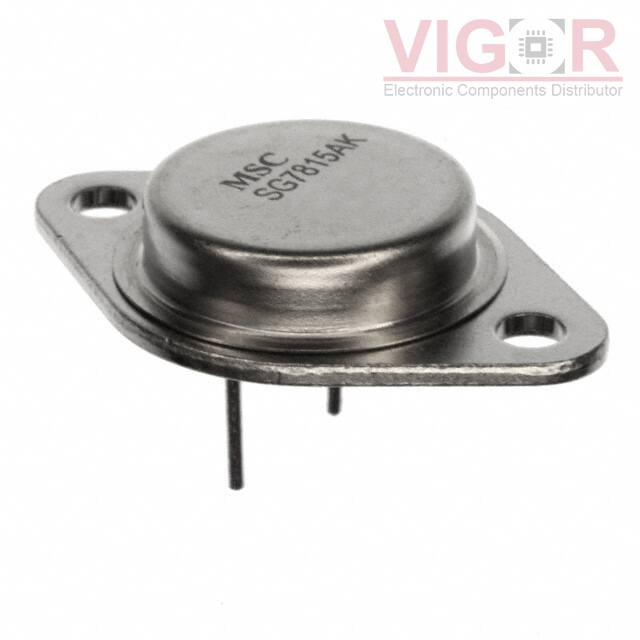

SG7815AK

Part No :: SG7815AK

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 4870130

Description: IC REG LINEAR 15V 1.5A TO204AD

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: SG7815AK PDF

Country of origin: -

Date code: -

SG7815AK Specifications

Type	Description
Series:	Military, MIL-STD-883
Package:	Bulk
Part Status:	Discontinued at Digi-Key
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	50V
Voltage - Output (Min/Fixed):	15V
Voltage - Output (Max):	-
Voltage Dropout (Max):	2.5V @ 500mA
Current - Output:	1.5A
Current - Quiescent (Iq):	-
Current - Supply (Max):	7 mA
PSRR:	60dB (120Hz)
Control Features:	Current Limit, Enable
Protection Features:	Over Current, Over Temperature
Operating Temperature:	-55°C ~ 125°C (TA)
Mounting Type:	Through Hole
Package / Case:	TO-204AA, TO-3
Supplier Device Package:	TO-204AD (TO-3)

Alternative Products

Part Number	Manufacturer & Description	Compare
SG7805K Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 5V 1.5A TO204AD	SG7815AK vs SG7805K
SG7805AK-883B Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 5V 1.5A TO204AD	SG7815AK vs SG7805AK-883B
SG7805AK Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 5V 1.5A TO204AD	SG7815AK vs SG7805AK
SG7815K Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 15V 1.5A TO204AD	SG7815AK vs SG7815K
SG7805K-JAN Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 5V 1.5A TO204AD	SG7815AK vs SG7805K-JAN
SG7812AK-DESC Match 100%	Roving Networks / Microchip Technology IC REG LINEAR 12V 1.5A TO204AD	SG7815AK vs SG7812AK-DESC
