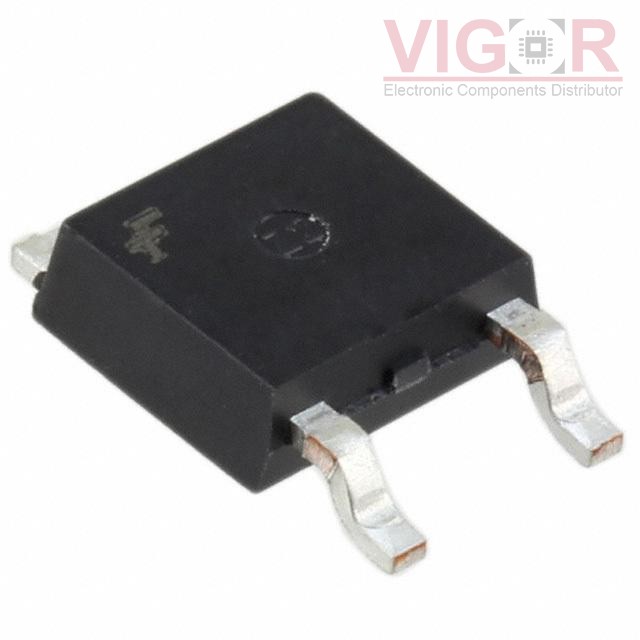

MC7809ECDTX

Part No :: MC7809ECDTX

Manufacturer: Sanyo Semiconductor/ON Semiconductor

VIGOR # :: 4870781

Description: IC REG LINEAR 9V 1A TO252

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: MC7809ECDTX PDF

Country of origin: -

Date code: -

MC7809ECDTX Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	35V
Voltage - Output (Min/Fixed):	9V
Voltage - Output (Max):	-
Voltage Dropout (Max):	2V @ 1A (Typ)
Current - Output:	1A
Current - Quiescent (Iq):	8 mA
Current - Supply (Max):	-
PSRR:	71dB (120Hz)
Control Features:	-
Protection Features:	Over Temperature, Short Circuit
Operating Temperature:	0°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:	TO-252, (D-Pak)
