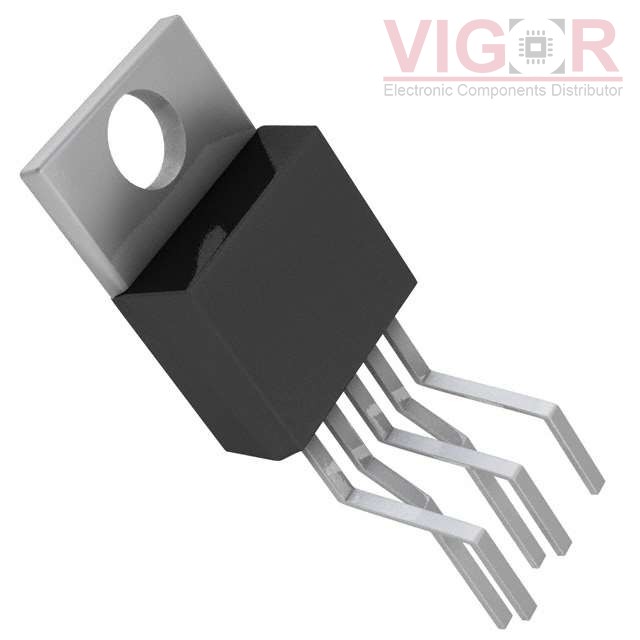

TLE4276V10NKSA1

Part No :: TLE4276V10NKSA1

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 4872487

Description: IC REG LIN 10V 400MA TO220-5-3

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: TLE4276V10NKSA1 PDF

Country of origin: -

Date code: -

TLE4276V10NKSA1 Specifications

Type	Description
Series:	Automotive, AEC-Q100, OPTIREG™
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	40V
Voltage - Output (Min/Fixed):	10V
Voltage - Output (Max):	-
Voltage Dropout (Max):	0.5V @ 250mA
Current - Output:	400mA
Current - Quiescent (Iq):	200 µA
Current - Supply (Max):	25 mA
PSRR:	54dB (100Hz)
Control Features:	Inhibit
Protection Features:	Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature:	-40°C ~ 150°C
Mounting Type:	Through Hole
Package / Case:	TO-220-5 Formed Leads
Supplier Device Package:	PG-TO220-5-3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1212

Shipped from

HK warehouse

Expected Shipping Date

Jan 02 - Jan 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of TLE4276V10NKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
