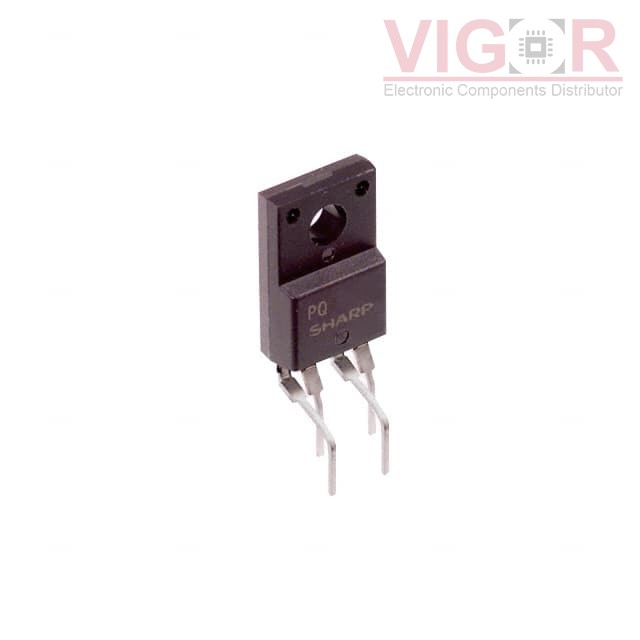

PQ3RD13B

Part No :: PQ3RD13B

Manufacturer: Sharp Microelectronics

VIGOR # :: 4873812

Description: IC REG LINEAR 3.3V 1A TO220-4

Catalog: PMIC - Voltage Regulators - Linear

DataSheet: PQ3RD13B PDF

Country of origin: -

Date code: -

PQ3RD13B Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
Output Configuration:	Positive
Output Type:	Fixed
Number of Regulators:	1
Voltage - Input (Max):	20V
Voltage - Output (Min/Fixed):	3.3V
Voltage - Output (Max):	-
Voltage Dropout (Max):	-
Current - Output:	1A
Current - Quiescent (Iq):	10 mA
Current - Supply (Max):	-
PSRR:	55dB (120Hz)
Control Features:	Enable
Protection Features:	Over Current, Over Temperature
Operating Temperature:	-20°C ~ 80°C
Mounting Type:	Through Hole
Package / Case:	TO-220-4
Supplier Device Package:	TO-220-4
