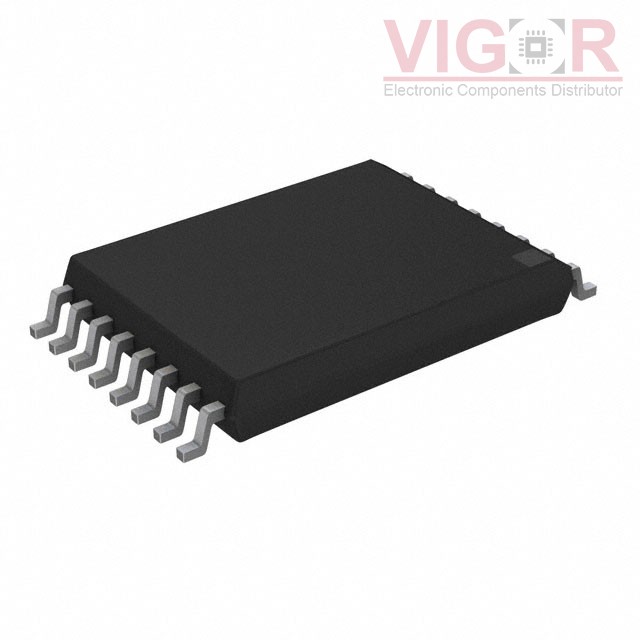

ISO7820DWW

Part No :: ISO7820DWW

Manufacturer: Texas Instruments

VIGOR # :: 4077696

Description: DGTL ISO 5700VRMS 2CH GP 16SOIC

Catalog: Digital Isolators

DataSheet: ISO7820DWW PDF

Country of origin: -

Date code: -

ISO7820DWW Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
Technology:	Capacitive Coupling
Type:	General Purpose
Isolated Power:	No
Number of Channels:	2
Inputs - Side 1/Side 2:	2/0
Channel Type:	Unidirectional
Voltage - Isolation:	5700Vrms
Common Mode Transient Immunity (Min):	100kV/µs
Data Rate:	100Mbps
Propagation Delay tpLH / tpHL (Max):	16ns, 16ns
Pulse Width Distortion (Max):	4.6ns
Rise / Fall Time (Typ):	2.4ns, 2.4ns
Voltage - Supply:	2.25V ~ 5.5V
Operating Temperature:	-55°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	16-SOIC (0.551", 14.00mm Width)
Supplier Device Package:	16-SOIC
