HCPL-316J

Product image
Product thumb
Part No :

HCPL-316J

Manufacturer
Broadcom
VIGOR # :

4087656

Description
OPTOISO 5KV 2CH GATE DRIVER 16SO
Catalog
Isolators - Gate Drivers
DataSheet
HCPL-316J PDF
Country of origin
-
Date code
-
ads
HCPL-316J Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Technology:Optical Coupling
Number of Channels:2
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):15kV/µs
Propagation Delay tpLH / tpHL (Max):500ns, 500ns
Pulse Width Distortion (Max):300ns
Rise / Fall Time (Typ):100ns, 100ns
Current - Output High, Low:2A, 2A
Current - Peak Output:2.5A
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:15V ~ 30V
Operating Temperature:-40°C ~ 100°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:16-SO
Approval Agency:CSA, IEC/EN/DIN, UR
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1322
Shipped from
HK warehouse
Expected Shipping Date
Dec 28 - Jan 01 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $9.61 $9.61
10 $8.70 $87.04
45 $6.89 $310.08
135 $5.80 $783.36
270 $5.44 $1 468.81
540 $4.99 $2 692.81
1035 $4.71 $4 879.70

Current price of HCPL-316J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

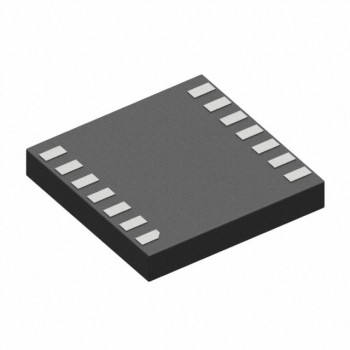

SI8275ABD-IM1R

SI8275ABD-IM1R

DGTL ISO 2.5KV GATE DRVR 14LGA

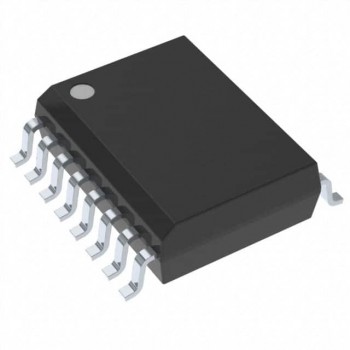

UCC21521ADW
