PS9505L1-AX

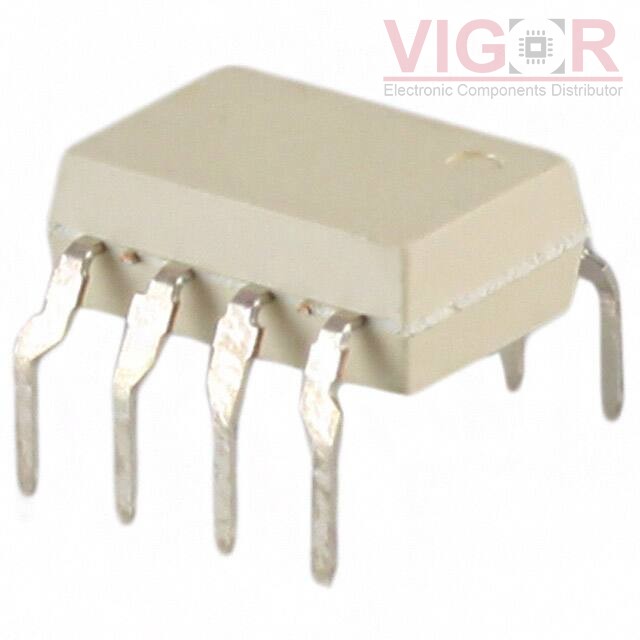

Product image
Product thumb
Part No :

PS9505L1-AX

Manufacturer
Renesas Electronics America
VIGOR # :

4087937

Description
OPTOISO 5KV 1CH GATE DRIVER 8DIP
Catalog
Isolators - Gate Drivers
DataSheet
PS9505L1-AX PDF
Country of origin
-
Date code
-
ads
PS9505L1-AX Specifications
Type Description
Series:-
Package:Tube
Part Status:Active
Technology:Optical Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):25kV/µs
Propagation Delay tpLH / tpHL (Max):250ns, 250ns
Pulse Width Distortion (Max):100ns
Rise / Fall Time (Typ):50ns, 50ns
Current - Output High, Low:2A, 2A
Current - Peak Output:2.5A
Voltage - Forward (Vf) (Typ):1.56V
Current - DC Forward (If) (Max):25 mA
Voltage - Output Supply:15V ~ 30V
Operating Temperature:-40°C ~ 110°C
Mounting Type:Through Hole
Package / Case:8-DIP (0.400", 10.16mm)
Supplier Device Package:8-DIP
Approval Agency:CSA, SEMKO, UL
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 50
Shipped from
HK warehouse
Expected Shipping Date
May 16 - May 20 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $4.2500 $4.25
10 $3.5417 $35.42
25 $2.9752 $74.38
100 $2.5500 $255.00
250 $2.2667 $566.67
500 $2.0542 $1 027.08
1000 $1.8842 $1 884.17
2500 $1.8062 $4 515.62
5000 $1.7567 $8 783.35

Current price of PS9505L1-AX is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
